Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 15/64, 1/2 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 14 31427 – 32159154
KYOCERA SGS 15/64, 1/2 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, S...
End Mills

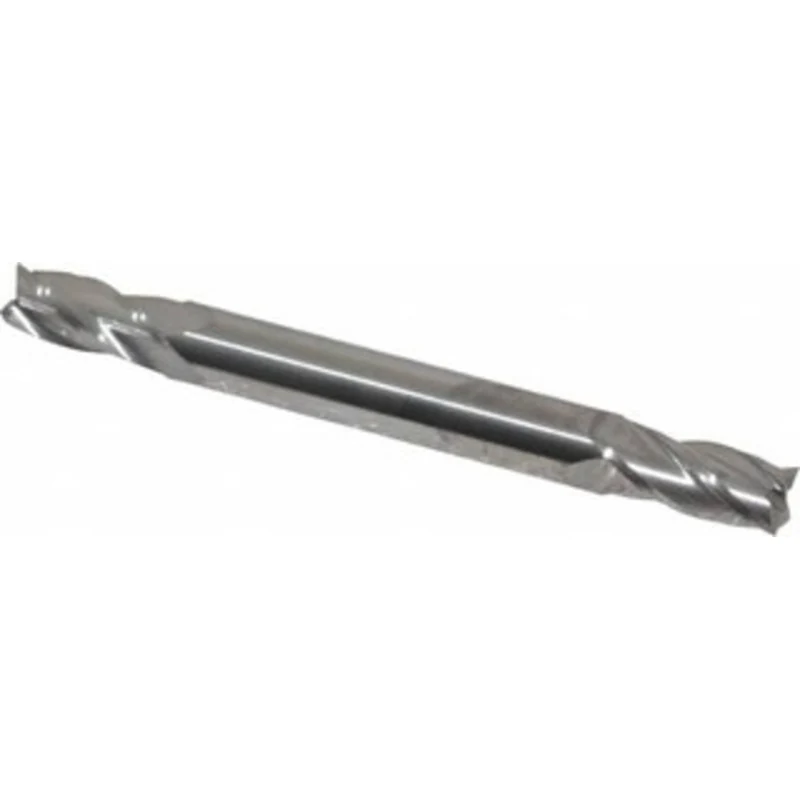

KYOCERA SGS 15/64, 1/2 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 14 31427 – 32159154

Original price was: $48.35.Current price is: $14.50.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 32159154
CATEGORY: End Mills
Description

KYOCERA SGS 15/64″, 1/2″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Double End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 14

Manufacturer Part #: 31427

S/N: 32159154

UNSPSC: 27112803

UPC: 691781314273

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2344
Mill Diameter (Inch)
15/64
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
14
