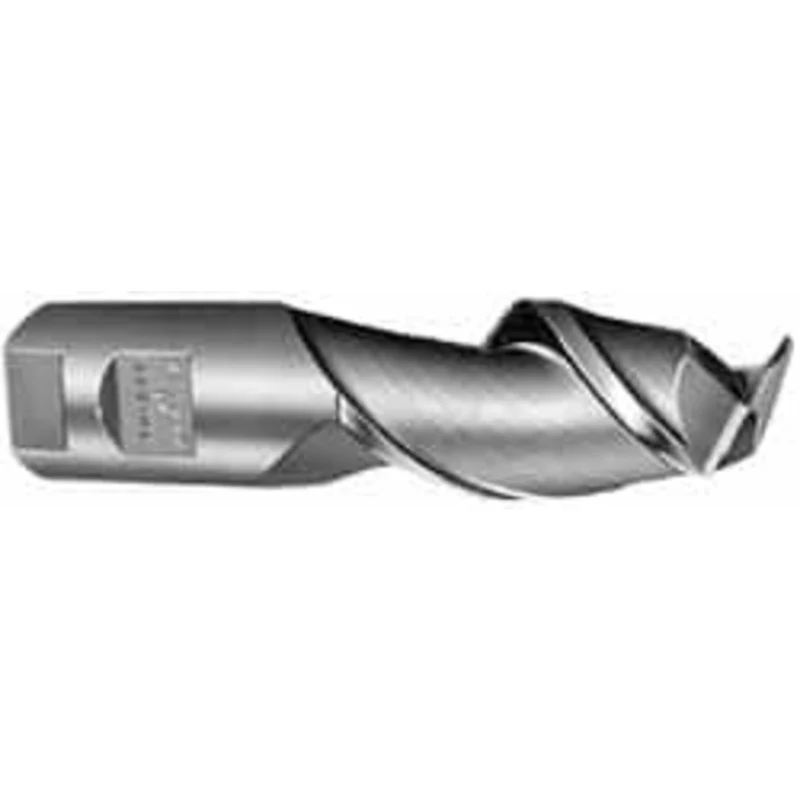

KYOCERA SGS 16mm, 32mm LOC, 16mm Shank Diam, 92mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44 44537 – 00391599

KYOCERA SGS 16mm, 32mm LOC, 16mm Shank Diam, 92mm OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44

Manufacturer Part #: 44537

S/N: 00391599

UNSPSC: 27112803

UPC: 691781445373

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
16.00
Mill Diameter (Decimal Inch)
0.6299
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.2600
Length of Cut (mm)
32.00
Shank Diameter (mm)
16.00
Overall Length (mm)
92.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Weldon Flat
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.011 mm
Shank Diameter Tolerance
+0.000/-0.011 mm
Series
44
