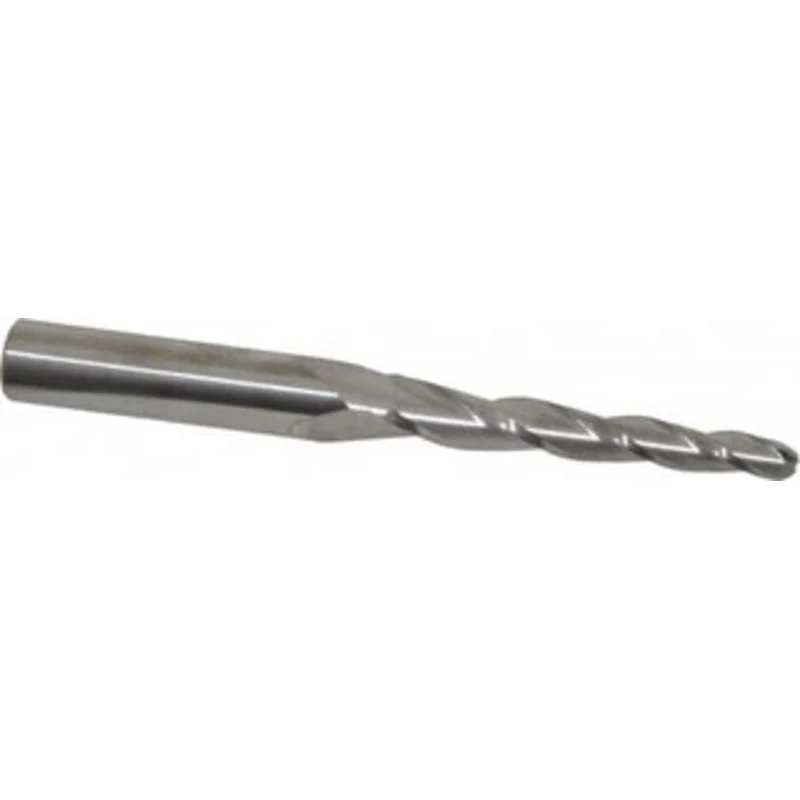

KYOCERA SGS 2 per Side 3/16 Small End Diam 1-3/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/8 Shank Diam, 3-1/2 OAL, 3/32 Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B 32420 – 03281292

KYOCERA SGS 2 per Side 3/16″ Small End Diam 1-3/4″ LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/8″ Shank Diam, 3-1/2″ OAL, 3/32″ Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B

Manufacturer Part #: 32420

S/N: 03281292

UNSPSC: 27112803

UPC: 691781324203

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1880
Length of Cut (Inch)
1-3/4
Taper Angle Per Side
2.00
End Mill Material
Solid Carbide
End Shape
Ball
Flute Type
Spiral
Overall Length (Inch)
3-1/2
Centercutting
Yes
Shank Diameter (Inch)
3/8
Nose Radius (Inch)
3/32
Small End Diameter (Inch)
3/16
Helix Angle
28
Shank Diameter Tolerance
-0.0001/-0.0004 in
Small End Diameter Tolerance
+0.0000/-0.0010 in
Primary Workpiece Material Code
H, K, M, N, P, S
Material Grade
Micrograin
Flute Direction
Right Hand
Series
24B
Length Of Cut (Decimal Inch – 4 Decimals)
1.7500
Coating/Finish
Uncoated
Number Of Flutes
3
