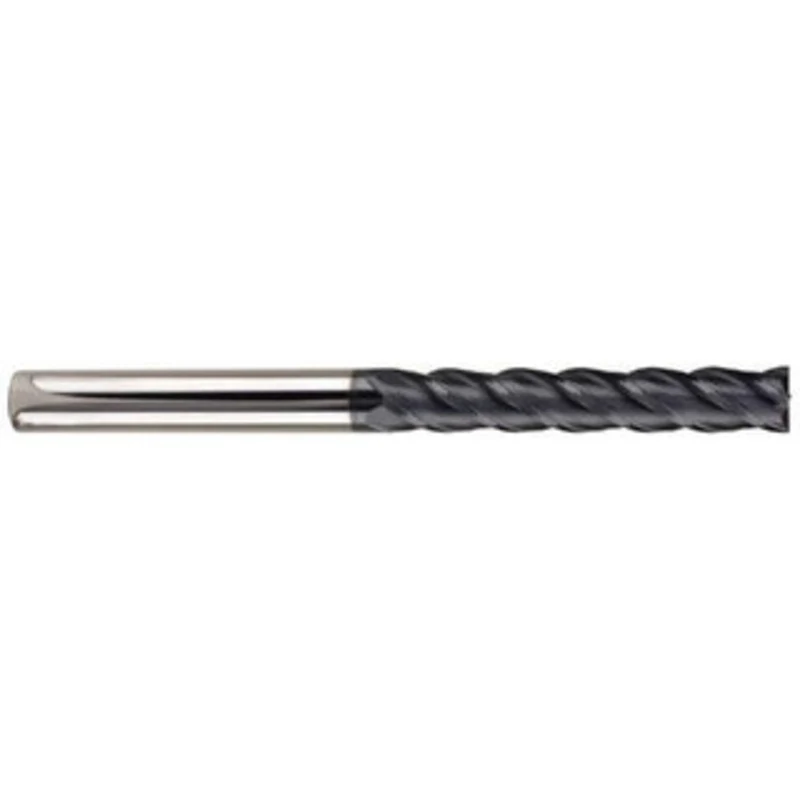

KYOCERA SGS 3/16, 1-1/8 LOC, 3/16 Shank Diam, 3 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 63 70473 – 66742438

KYOCERA SGS 3/16″, 1-1/8″ LOC, 3/16″ Shank Diam, 3″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 63

Manufacturer Part #: 70473

S/N: 66742438

UNSPSC: 27112803

UPC: 691781704739

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.1250
Length of Cut (Inch)
1-1/8
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00032 in
Series
63
