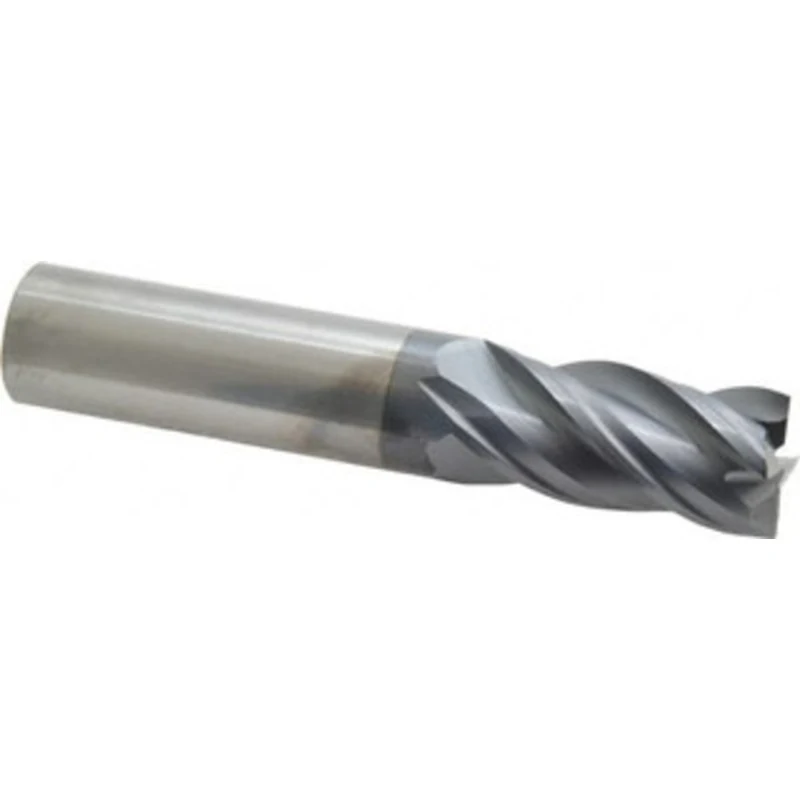

KYOCERA SGS 3/4, 1-1/2 LOC, 3/4 Shank Diam, 4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1 36442 – 86993706

KYOCERA SGS 3/4″, 1-1/2″ LOC, 3/4″ Shank Diam, 4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1

Manufacturer Part #: 36442

S/N: 86993706

UNSPSC: 27112803

UPC: 691781364421

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.5000
Length of Cut (Inch)
1-1/2
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
4.0000
Overall Length (Inch)
4
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.0000/-0.0020 in
Shank Diameter Tolerance
+0.00000/-0.00051 in
Series
Z1
