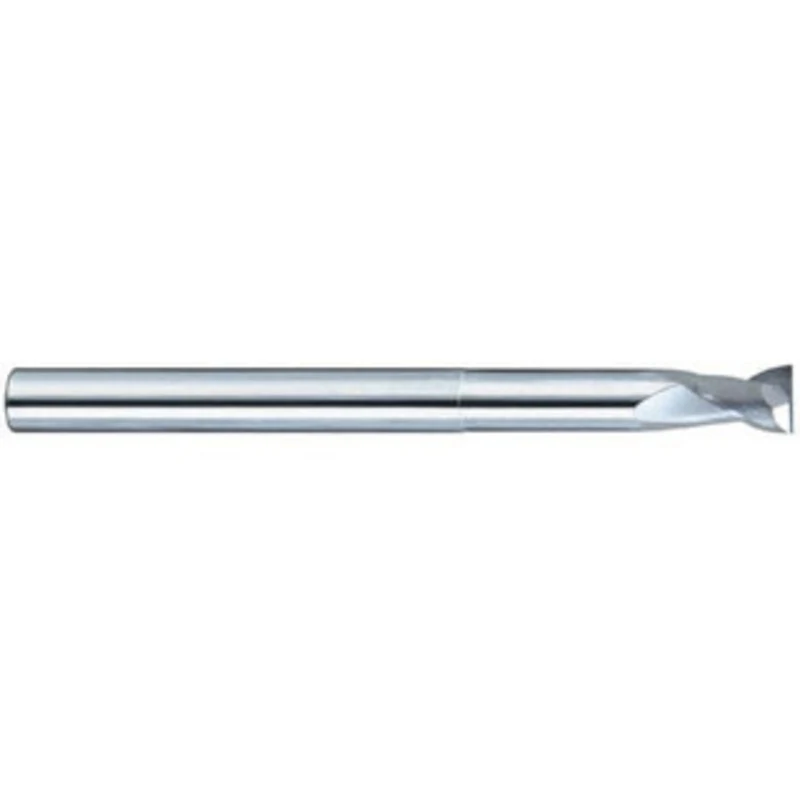

KYOCERA SGS 3/4, 1 LOC, 3/4 Shank Diam, 6 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 47E 34646 – 86552700

KYOCERA SGS 3/4″, 1″ LOC, 3/4″ Shank Diam, 6″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 35 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 47E

Manufacturer Part #: 34646

S/N: 86552700

UNSPSC: 27112803

UPC: 691781346465

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.7500
Mill Diameter (Inch)
3/4
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
3/4
Shank Diameter (Decimal Inch)
0.7500
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
Yes
Helix Angle
35
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Reach Length (Inch)
2-1/2
Length Of Cut Range (Decimal Inch)
1.0000 – 1.2500
Mill Diameter Tolerance
-0.0001/-0.0004 in
Shank Diameter Tolerance
+0.00000/-0.00051 in
Series
47E
