Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 3/8, 3/4 LOC, 3/8 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44 34509 – 00074732
KYOCERA SGS 3/8, 3/4 LOC, 3/8 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spi...
End Mills

KYOCERA SGS 3/8, 3/4 LOC, 3/8 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44 34509 – 00074732

Original price was: $122.70.Current price is: $36.81.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 74732
CATEGORY: End Mills
Description

KYOCERA SGS 3/8″, 3/4″ LOC, 3/8″ Shank Diam, 2-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 45 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 44

Manufacturer Part #: 34509

S/N: 00074732

UNSPSC: 27112803

UPC: 691781345093

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.7500
Length of Cut (Inch)
3/4
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Weldon Flat
Length Type
Stub
Mill Diameter Tolerance
+0.00000/-0.00035 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
44

Product Information

Related products

Accupro 1 per Side 1/4 Small End Diam 3-1/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/8 Shank Diam,...
End Mills

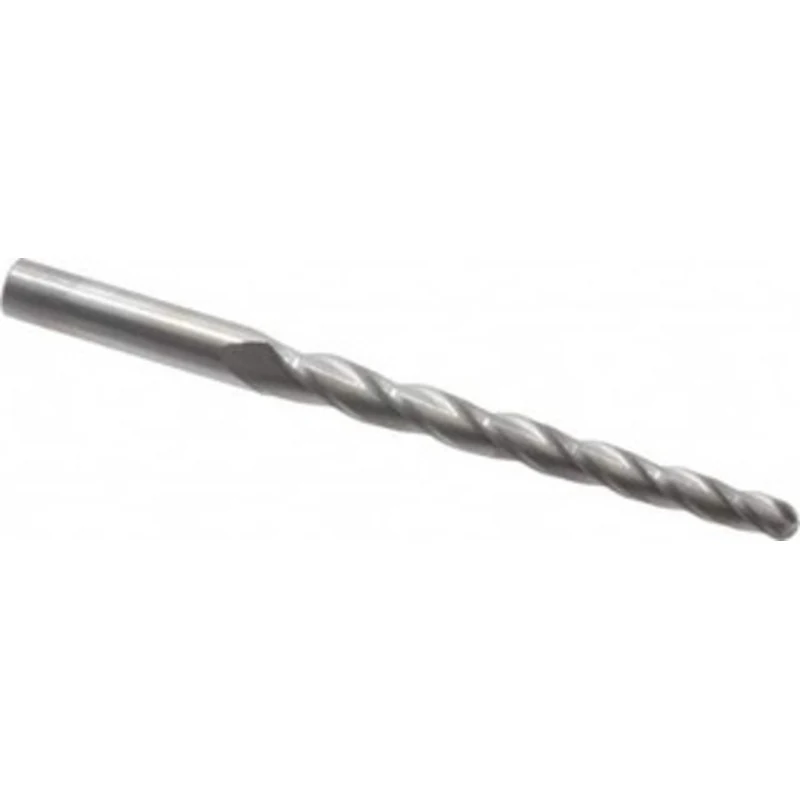

Accupro 1 per Side 1/4 Small End Diam 3-1/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 3/8 Shank Diam, 5 OAL, 1/8 Nose Radius, 30 Helix, Spiral Flute, Centercutting 12177580 – 01734276
