Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 3/8 Diam, 5/8 LOC, 3/8 Shank Diam, 2 OAL, 4 Flute Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Stub Length 31259 – 87722195
KYOCERA SGS 3/8 Diam, 5/8 LOC, 3/8 Shank Diam, 2 OAL, 4 Flute Solid Carbide Square End Mill Single End, AlTiN Finish,...
End Mills

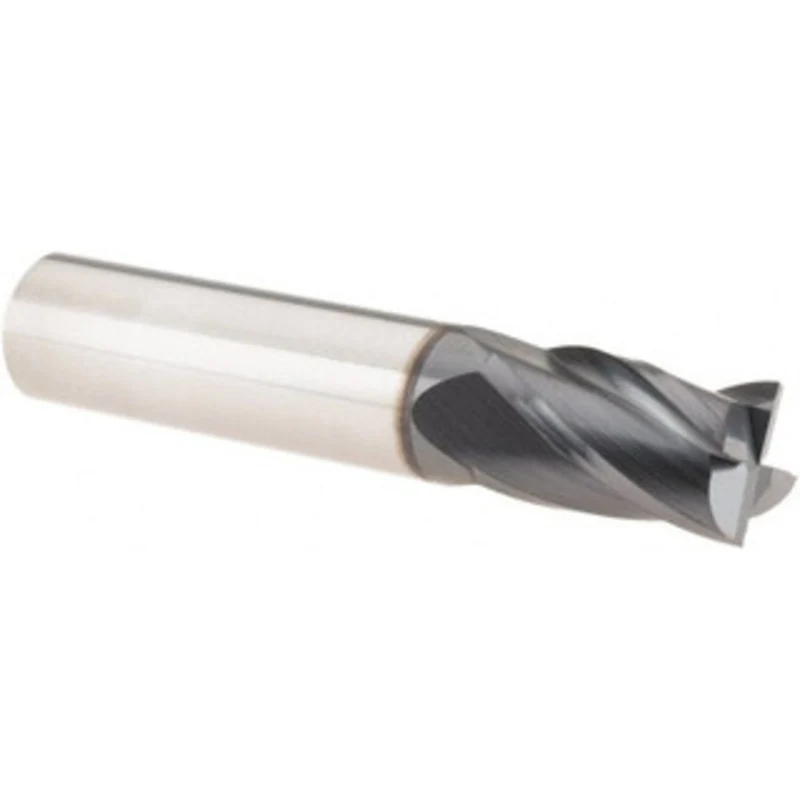

KYOCERA SGS 3/8 Diam, 5/8 LOC, 3/8 Shank Diam, 2 OAL, 4 Flute Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Stub Length 31259 – 87722195

Original price was: $52.70.Current price is: $15.81.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 87722195
CATEGORY: End Mills
Description

KYOCERA SGS 3/8″ Diam, 5/8″ LOC, 3/8″ Shank Diam, 2″ OAL, 4 Flute Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Stub Length

Manufacturer Part #: 31259

S/N: 87722195

UNSPSC: 27112803

UPC: 691781312590

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3750
Mill Diameter (Inch)
3/8
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
3/8
Shank Diameter (Decimal Inch)
0.3750
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
16

Product Information
