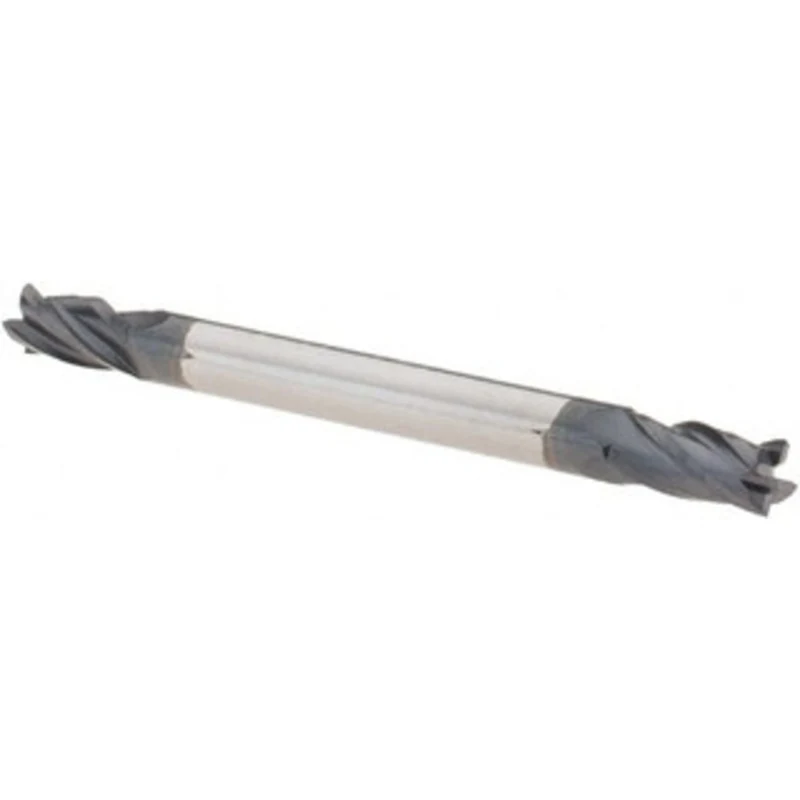

KYOCERA SGS 3mm, 6mm LOC, 3mm Shank Diam, 38mm OAL, 4 Flute, Solid Carbide Square End Mill Double End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 14M 48930 – 58975202

KYOCERA SGS 3mm, 6mm LOC, 3mm Shank Diam, 38mm OAL, 4 Flute, Solid Carbide Square End Mill Double End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 14M

Manufacturer Part #: 48930

S/N: 58975202

UNSPSC: 27112803

UPC: 691781489308

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
3.00
Mill Diameter (Decimal Inch)
0.1181
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.2362
Length of Cut (mm)
6.00
Shank Diameter (mm)
3.00
Overall Length (mm)
38.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Length Of Cut Range (Decimal Inch)
0.2000 – 0.3000
Mill Diameter Tolerance
+0.000/-0.050 mm
Shank Diameter Tolerance
+0.000/-0.006 mm
Series
14M
