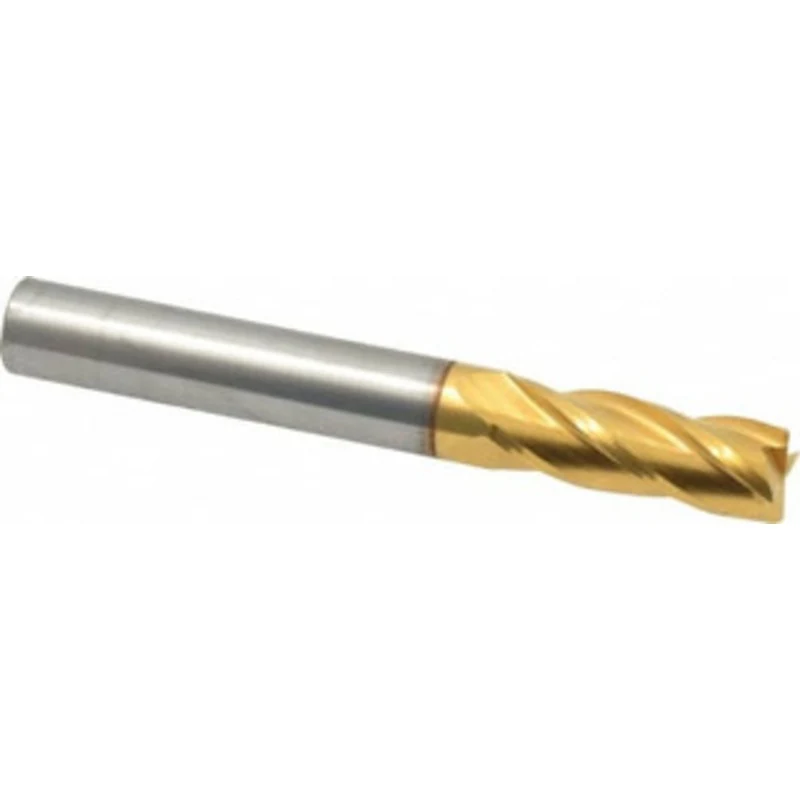

KYOCERA SGS 5/16, 13/16 LOC, 5/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finis...
End Mills

KYOCERA SGS 5/16, 13/16 LOC, 5/16 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1 39139 – 32136202

Original price was: $42.83.Current price is: $12.85.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 32136202
CATEGORY: End Mills
Description

KYOCERA SGS 5/16″, 13/16″ LOC, 5/16″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1

Manufacturer Part #: 39139

S/N: 32136202

UNSPSC: 27112803

UPC: 691781391397

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.8125
Length of Cut (Inch)
13/16
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
1
