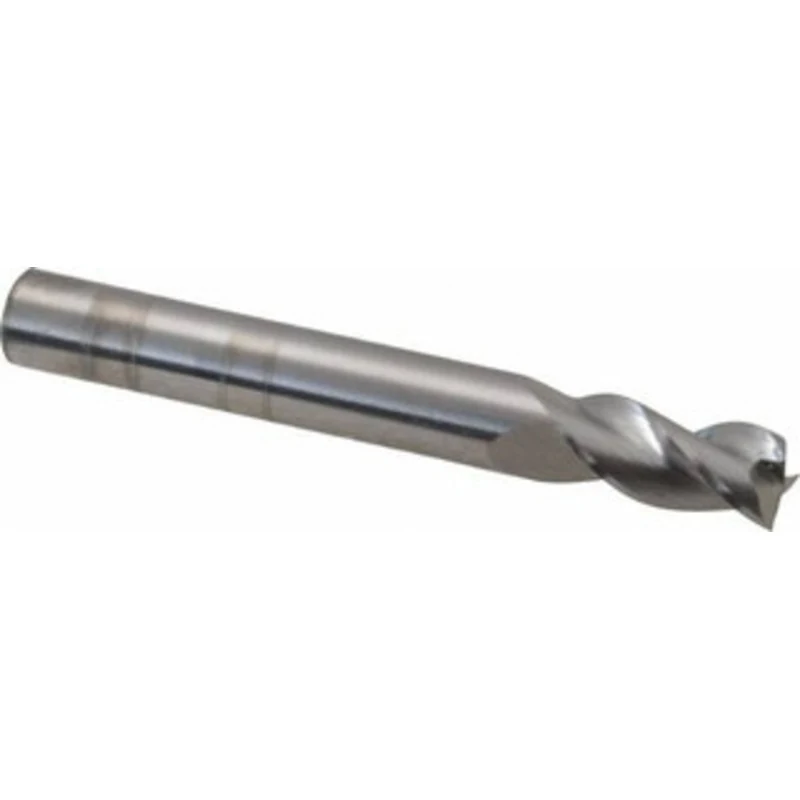

KYOCERA SGS 5/16, 5/8 LOC, 5/16 Shank Diam, 2-1/2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43 34707 – 40918005

KYOCERA SGS 5/16″, 5/8″ LOC, 5/16″ Shank Diam, 2-1/2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34707

S/N: 40918005

UNSPSC: 27112803

UPC: 691781347073

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Inch)
2-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.6000 – 0.7000
Mill Diameter Tolerance
+0.00000/-0.00035 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
43
