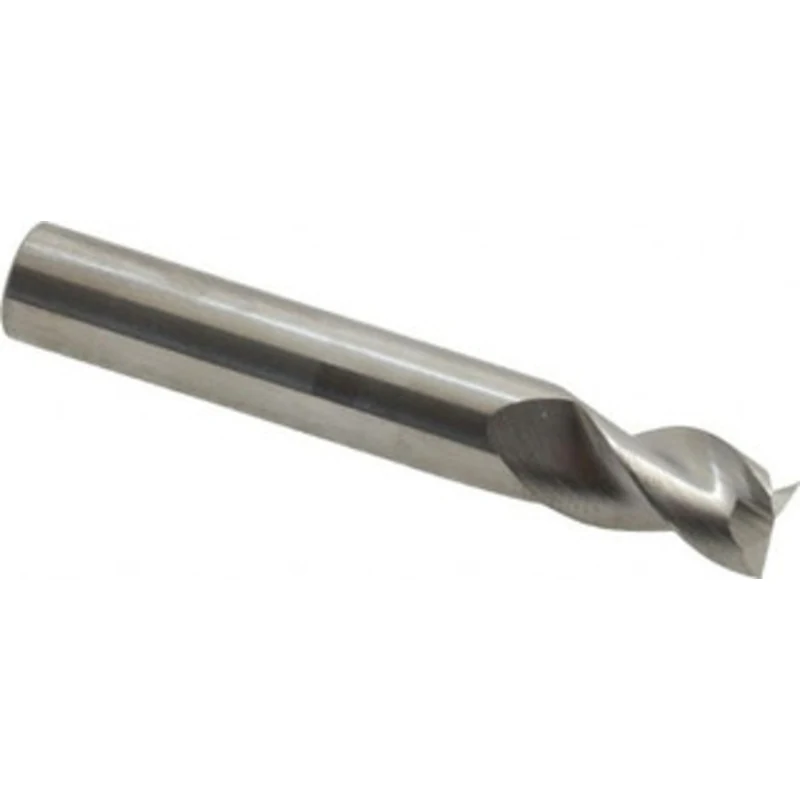

KYOCERA SGS 5/16, 7/16 LOC, 5/16 Shank Diam, 2 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43 34706 – 74227661

KYOCERA SGS 5/16″, 7/16″ LOC, 5/16″ Shank Diam, 2″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34706

S/N: 74227661

UNSPSC: 27112803

UPC: 691781347066

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.3125
Mill Diameter (Inch)
5/16
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.4375
Length of Cut (Inch)
7/16
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
+0.00000/-0.00035 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
43
