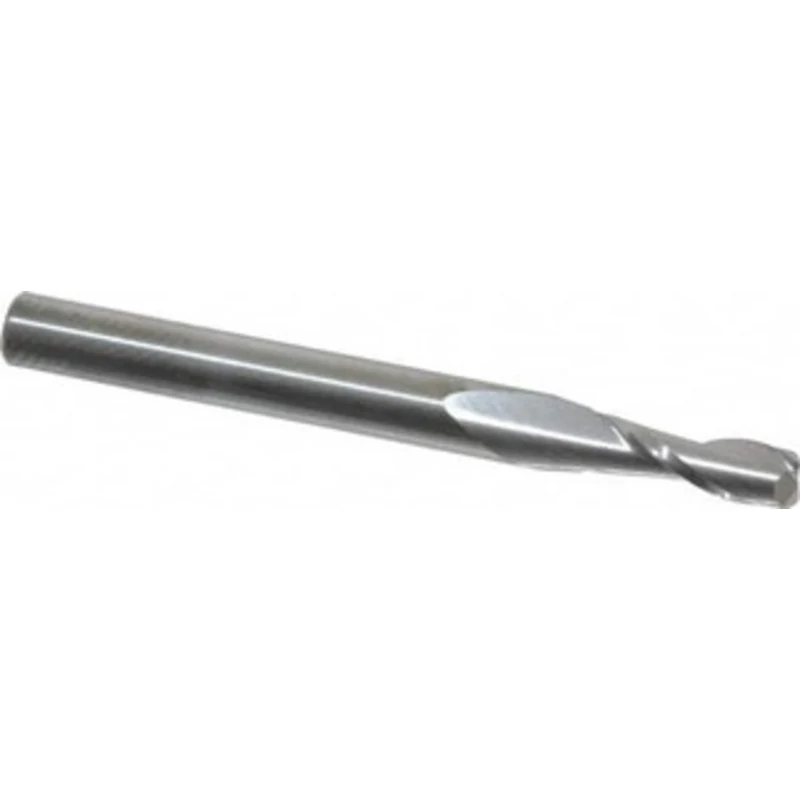

KYOCERA SGS 5/32, 1/2 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3 30319 – 32133100

KYOCERA SGS 5/32″, 1/2″ LOC, 3/16″ Shank Diam, 2″ OAL, 2 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 3

Manufacturer Part #: 30319

S/N: 32133100

UNSPSC: 27112803

UPC: 691781303192

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1563
Mill Diameter (Inch)
5/32
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.5000 – 0.6000
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00032 in
Series
3
