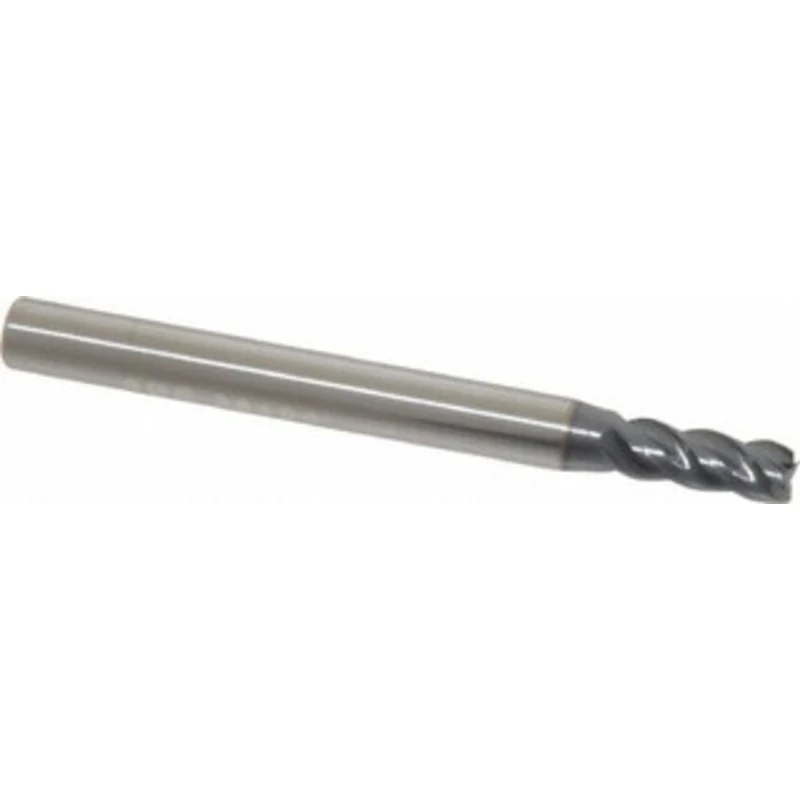

KYOCERA SGS 5/32, 7/16 LOC, 3/16 Shank Diam, 2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1 36406 – 86993615

KYOCERA SGS 5/32″, 7/16″ LOC, 3/16″ Shank Diam, 2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Right Hand Cut, Right Hand Flute, Series Z1

Manufacturer Part #: 36406

S/N: 86993615

UNSPSC: 27112803

UPC: 691781364063

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1563
Mill Diameter (Inch)
5/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.4375
Length of Cut (Inch)
7/16
Shank Diameter (Inch)
3/16
Shank Diameter (Decimal Inch)
0.1875
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
Yes
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.3000 – 0.5000
Mill Diameter Tolerance
+0.0000/-0.0012 in
Shank Diameter Tolerance
+0.00000/-0.00032 in
Series
Z1
