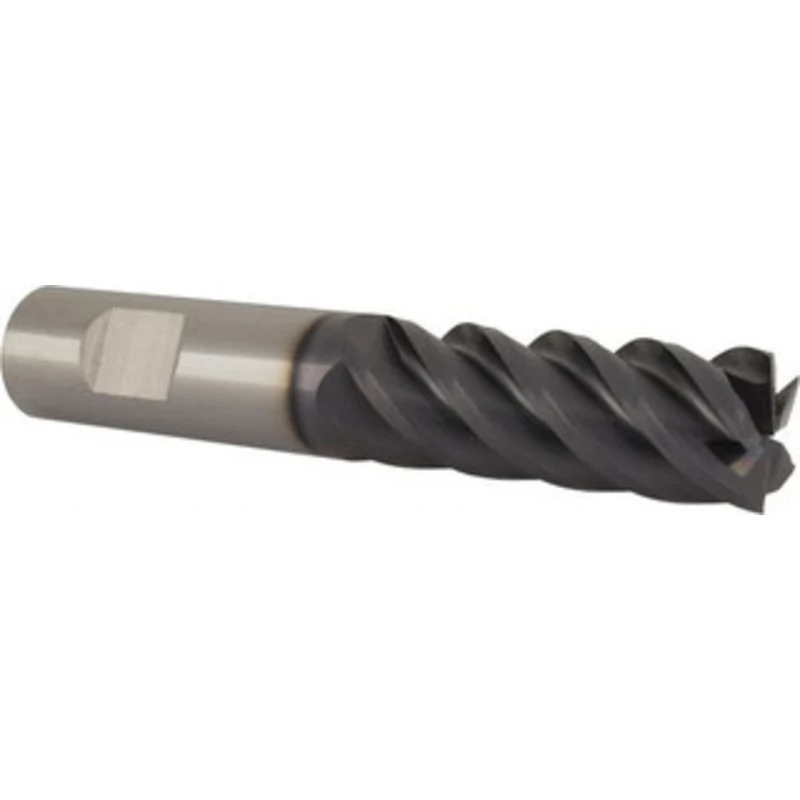

KYOCERA SGS 5/8, 1-5/8 LOC, 5/8 Shank Diam, 3-1/2 OAL, 5 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, Series 55 32667 – 82003468

KYOCERA SGS 5/8″, 1-5/8″ LOC, 5/8″ Shank Diam, 3-1/2″ OAL, 5 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, 45 Helix, Right Hand Cut, Right Hand Flute, Series 55

Manufacturer Part #: 32667

S/N: 82003468

UNSPSC: 27112803

UPC: 691781326672

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
5
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Inch)
3-1/2
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
45
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.0000/-0.0020 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
55
