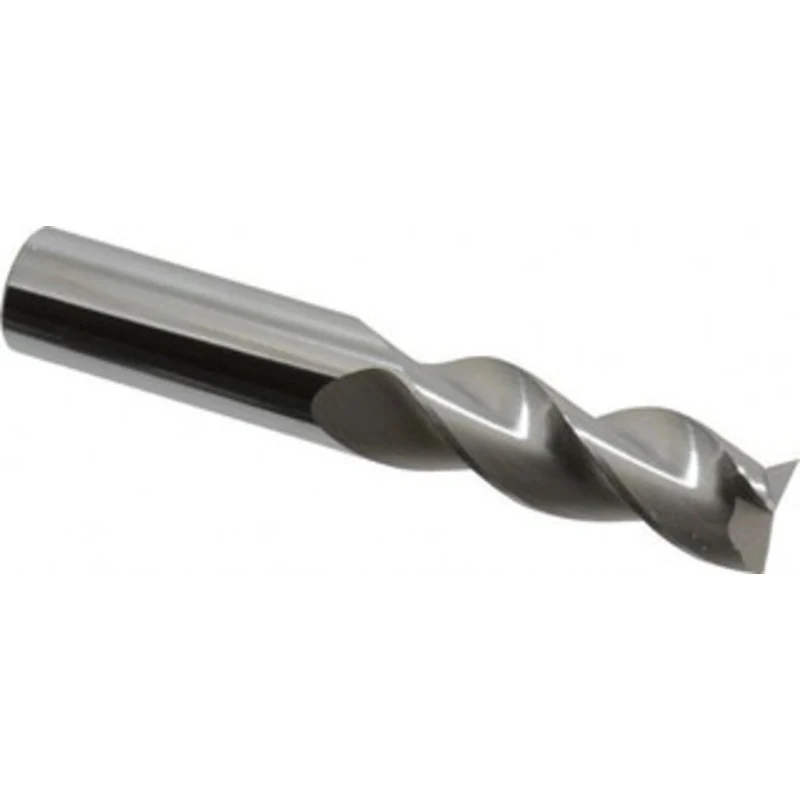

KYOCERA SGS 5/8, 1-5/8 LOC, 5/8 Shank Diam, 3-3/4 OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43 34717 – 86552536

KYOCERA SGS 5/8″, 1-5/8″ LOC, 5/8″ Shank Diam, 3-3/4″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 38 Helix, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34717

S/N: 86552536

UNSPSC: 27112803

UPC: 691781347172

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.6250
Length of Cut (Inch)
1-5/8
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Inch)
3-3/4
Centercutting
No
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
1.5000 – 2.0000
Mill Diameter Tolerance
+0.00000/-0.00043 in
Shank Diameter Tolerance
+0.00000/-0.00043 in
Series
43
