Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 5/8, 3-1/4 LOC, 5/8 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 43 34869 – 39211305
KYOCERA SGS 5/8, 3-1/4 LOC, 5/8 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Sp...
End Mills

KYOCERA SGS 5/8, 3-1/4 LOC, 5/8 Shank Diam, 6 OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 43 34869 – 39211305

Original price was: $448.72.Current price is: $115.27.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 39211305
CATEGORY: End Mills
Description

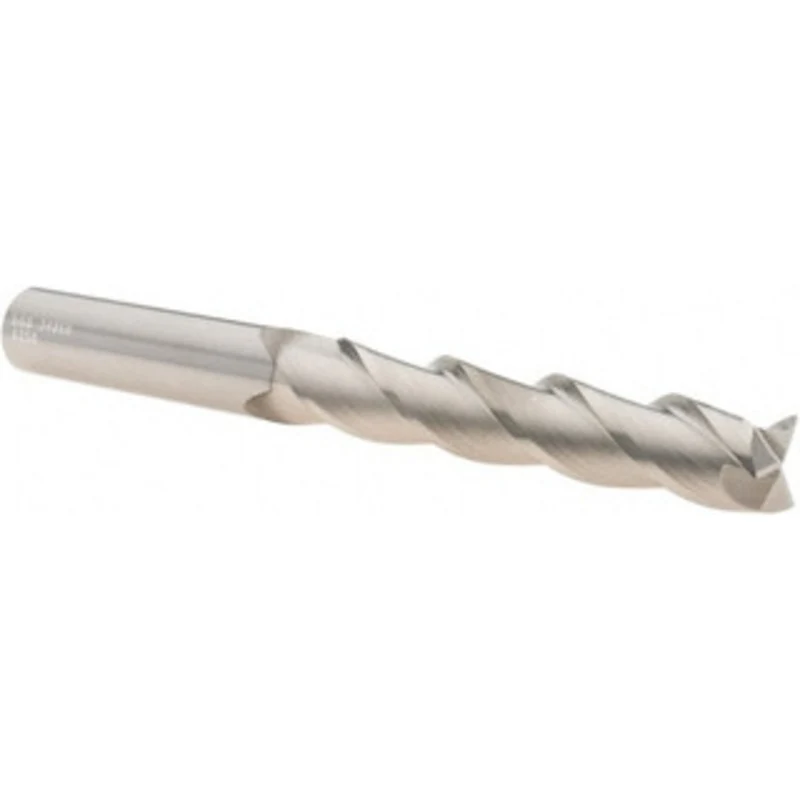

KYOCERA SGS 5/8″, 3-1/4″ LOC, 5/8″ Shank Diam, 6″ OAL, 3 Flute, Solid Carbide Square End Mill Single End, TiB2 Finish, Spiral Flute, 38 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 43

Manufacturer Part #: 34869

S/N: 39211305

UNSPSC: 27112803

UPC: 691781348698

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.6250
Mill Diameter (Inch)
5/8
Number Of Flutes
3
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
3.2500
Length of Cut (Inch)
3-1/4
Shank Diameter (Inch)
5/8
Shank Diameter (Decimal Inch)
0.6250
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
38
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
+0.00000 to -0.00043 in
Shank Diameter Tolerance
h6
Series
43

Product Information
