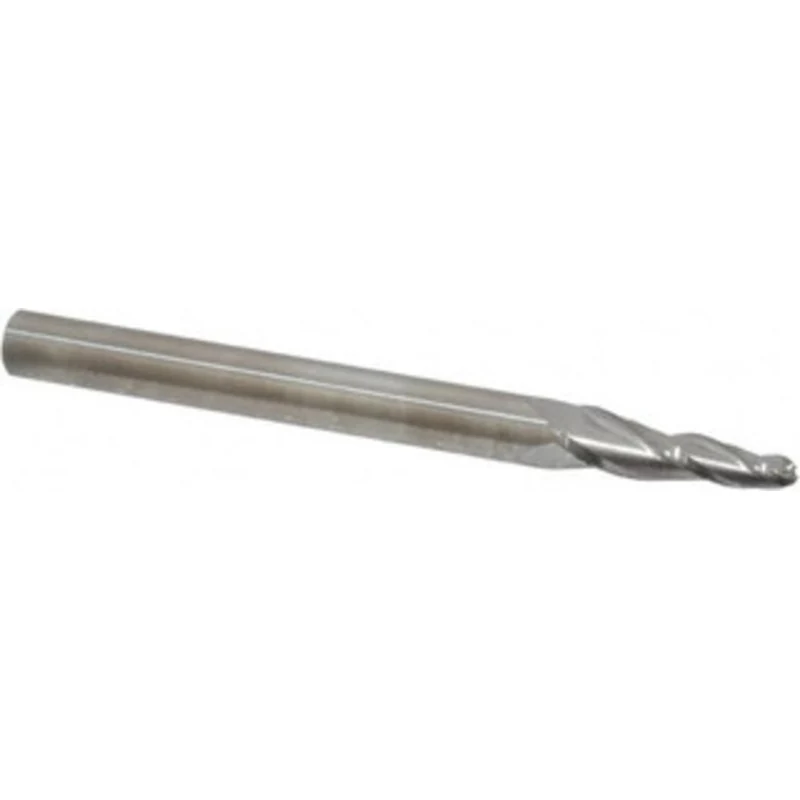

KYOCERA SGS 5 per Side 1/8 Small End Diam 3/4 LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/4 Shank Diam, 3 OAL, 1/16 Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B 32410 – 03281243

KYOCERA SGS 5 per Side 1/8″ Small End Diam 3/4″ LOC 3-Flute Solid Carbide Tapered Ball End Mill Uncoated, 1/4″ Shank Diam, 3″ OAL, 1/16″ Nose Radius, 28 Helix, Spiral Flute, Centercutting, Series 24B

Manufacturer Part #: 32410

S/N: 03281243

UNSPSC: 27112803

UPC: 691781324104

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Length of Cut (Inch)
3/4
Taper Angle Per Side
5.00
End Mill Material
Solid Carbide
End Shape
Ball
Flute Type
Spiral
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Shank Diameter (Inch)
1/4
Nose Radius (Inch)
1/16
Small End Diameter (Inch)
1/8
Helix Angle
28
Shank Diameter Tolerance
-0.0001/-0.0004 in
Small End Diameter Tolerance
+0.0000/-0.0010 in
Primary Workpiece Material Code
H, K, M, N, P, S
Material Grade
Micrograin
Flute Direction
Right Hand
Series
24B
Length Of Cut (Decimal Inch – 4 Decimals)
0.7500
Coating/Finish
Bright/Uncoated
Number Of Flutes
3
