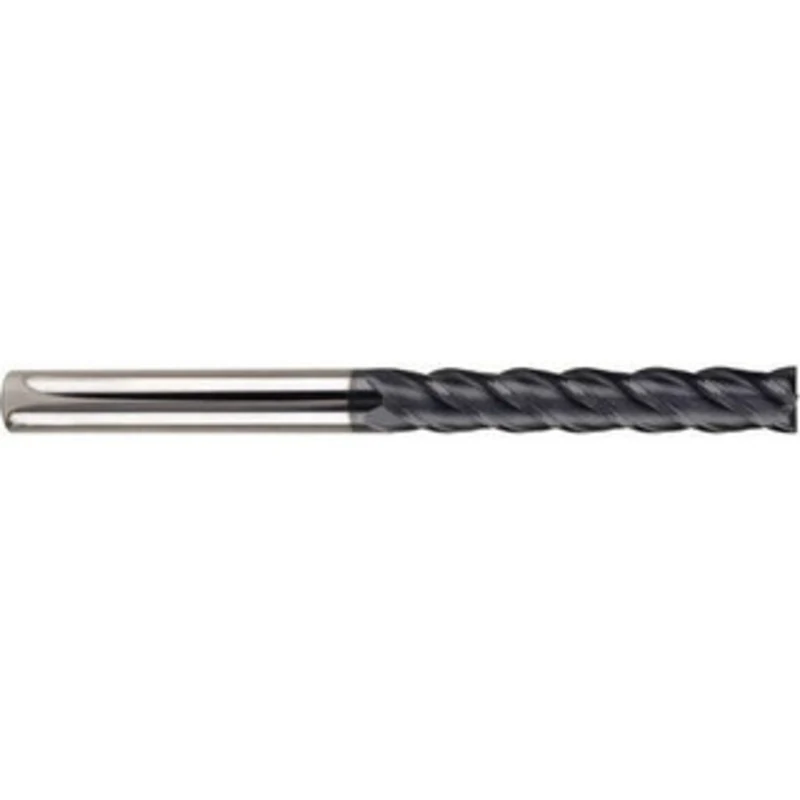

KYOCERA SGS 6mm, 25mm LOC, 6mm Shank Diam, 75mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 7MS 70554 – 92408145

KYOCERA SGS 6mm, 25mm LOC, 6mm Shank Diam, 75mm OAL, 4 Flute, Solid Carbide Square End Mill Single End, AlTiN Finish, Spiral Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 7MS

Manufacturer Part #: 70554

S/N: 92408145

UNSPSC: 27112803

UPC: 691781705545

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (mm)
6.00
Mill Diameter (Decimal Inch)
0.2362
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.9843
Length of Cut (mm)
25.00
Shank Diameter (mm)
6.00
Overall Length (mm)
75.00
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Primary Workpiece Material Code
H, K, M, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Length Of Cut Range (Decimal Inch)
0.8000 – 1.0000
Mill Diameter Tolerance
+0.000/-0.050 mm
Shank Diameter Tolerance
+0.000/-0.008 mm
Series
7MS
