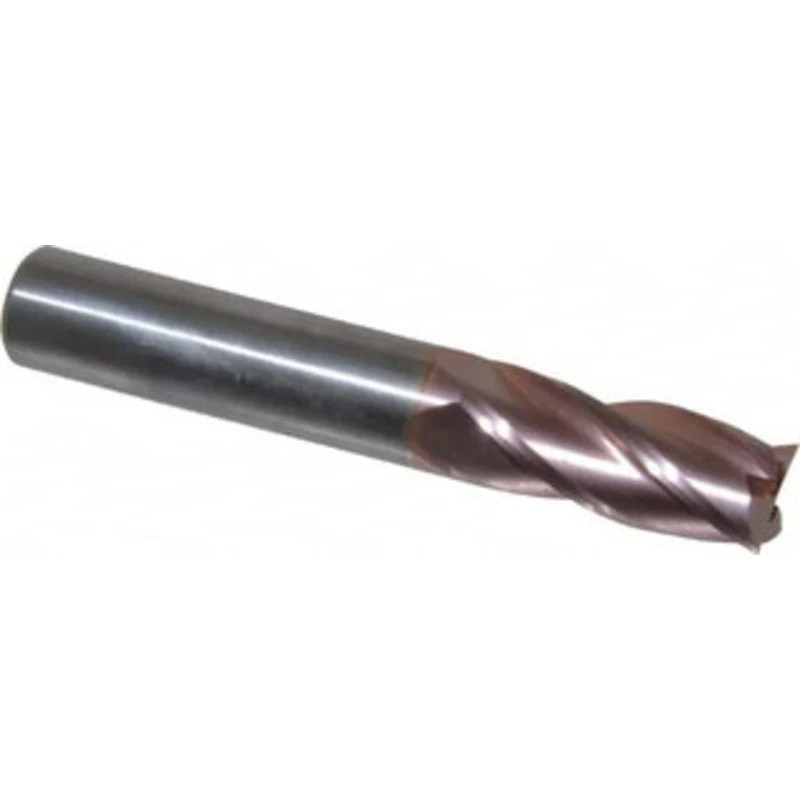

KYOCERA SGS 7/16, 1 LOC, 7/16 Shank Diam, 2-3/4 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54 35510 – 00074633

KYOCERA SGS 7/16″, 1″ LOC, 7/16″ Shank Diam, 2-3/4″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54

Manufacturer Part #: 35510

S/N: 00074633

UNSPSC: 27112803

UPC: 691781355108

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4375
Mill Diameter (Inch)
7/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
1.0000
Length of Cut (Inch)
1
Shank Diameter (Inch)
7/16
Shank Diameter (Decimal Inch)
0.4375
Overall Length (Inch)
2-3/4
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
54
