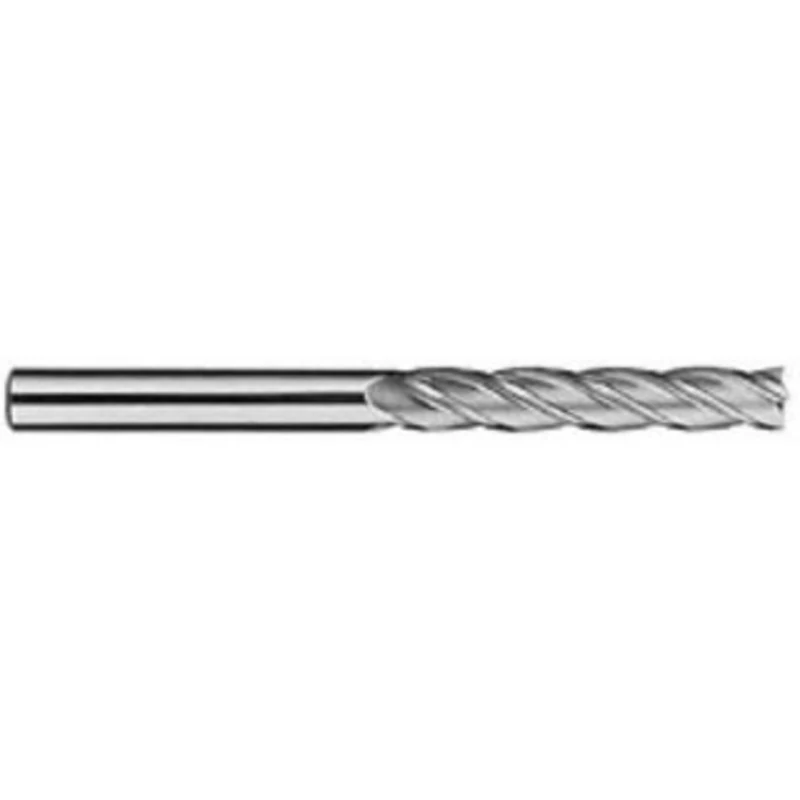

KYOCERA SGS 7/16, 3 LOC, 7/16 Shank Diam, 6 OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1EL 33129 – 32146284

KYOCERA SGS 7/16″, 3″ LOC, 7/16″ Shank Diam, 6″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, Uncoated, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 1EL

Manufacturer Part #: 33129

S/N: 32146284

UNSPSC: 27112803

UPC: 691781331294

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.4375
Mill Diameter (Inch)
7/16
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
3.0000
Length of Cut (Inch)
3
Shank Diameter (Inch)
7/16
Shank Diameter (Decimal Inch)
0.4375
Overall Length (Decimal Inch)
6.0000
Overall Length (Inch)
6
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
Yes
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Extra Long
Length Of Cut Range (Decimal Inch)
2.0000+
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
1EL
