Home › Cutting Tools & Abrasives › End Mills › KYOCERA SGS 7/32, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54 35505 – 00074583
KYOCERA SGS 7/32, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish,...
End Mills

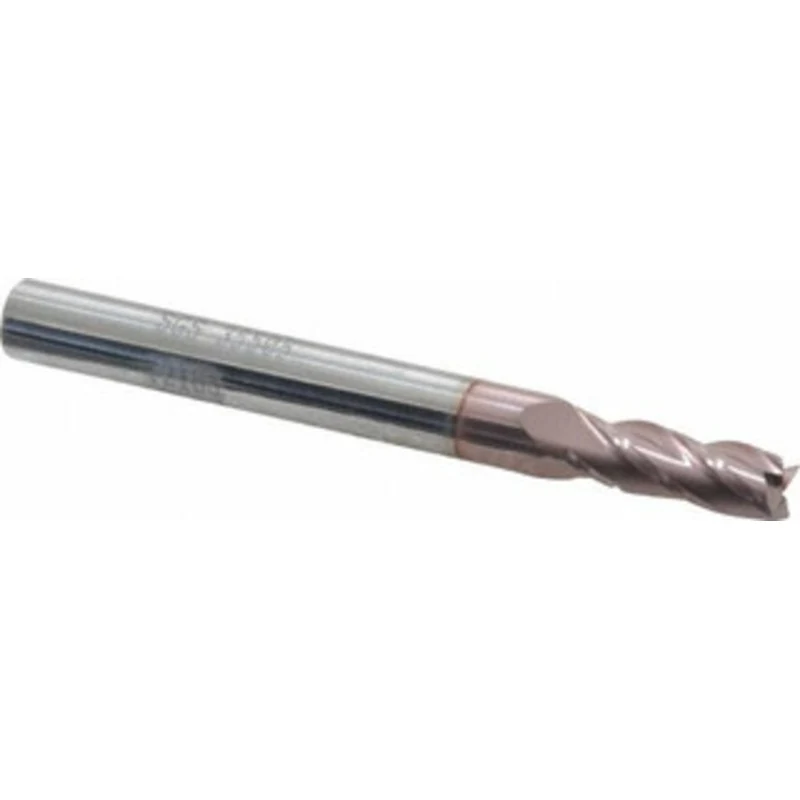

KYOCERA SGS 7/32, 5/8 LOC, 1/4 Shank Diam, 2-1/2 OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54 35505 – 00074583

Original price was: $44.08.Current price is: $13.22.

Availability: 8 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 74583
CATEGORY: End Mills
Description

KYOCERA SGS 7/32″, 5/8″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, 4 Flute, Solid Carbide Square End Mill Single End, TiCN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 54

Manufacturer Part #: 35505

S/N: 00074583

UNSPSC: 27112803

UPC: 691781355054

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2188
Mill Diameter (Inch)
7/32
Number Of Flutes
4
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.6250
Length of Cut (Inch)
5/8
Shank Diameter (Inch)
1/4
Shank Diameter (Decimal Inch)
0.2500
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Regular
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
+0.00000/-0.00035 in
Series
54

Product Information
