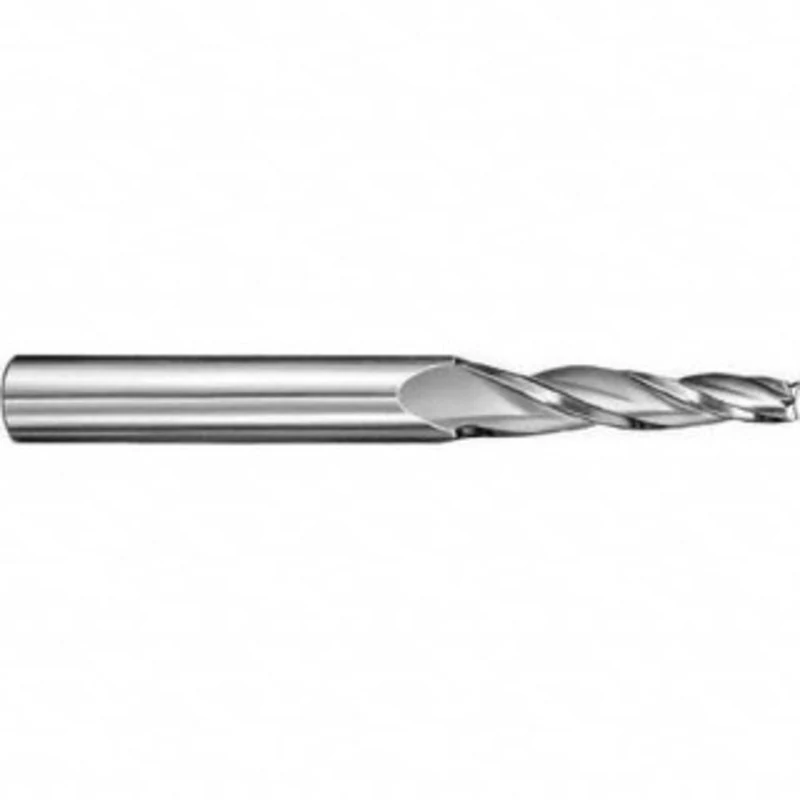

KYOCERA SGS 7 per Side 1/8 Small End Diam 1/2 LOC 3-Flute Solid Carbide Tapered Square End Mill AlTiN Finish, 1/4 Shank Diam, 3 OAL, 28 Helix, Spiral Flute, Centercutting 32350 – 70637053

KYOCERA SGS 7 per Side 1/8″ Small End Diam 1/2″ LOC 3-Flute Solid Carbide Tapered Square End Mill AlTiN Finish, 1/4″ Shank Diam, 3″ OAL, 28 Helix, Spiral Flute, Centercutting

Manufacturer Part #: 32350

S/N: 70637053

UNSPSC: 27112803

UPC: 691781323503

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.1250
Length of Cut (Inch)
1/2
Taper Angle Per Side
7.00
End Mill Material
Solid Carbide
End Shape
Square
Flute Type
Spiral
Overall Length (Decimal Inch)
3.0000
Overall Length (Inch)
3
Centercutting
Yes
Shank Diameter (Inch)
1/4
Small End Diameter (Inch)
1/8
Helix Angle
28
Shank Diameter Tolerance
+0.00000/-0.00035 in
Small End Diameter Tolerance
+0.001/-0.002 in
Primary Workpiece Material Code
H, K, M, N, P, S
Material Grade
Micrograin
Flute Direction
Right Hand
Series
23
Length Of Cut (Decimal Inch – 4 Decimals)
0.5000
Coating/Finish
AlTiN
Number Of Flutes
3
