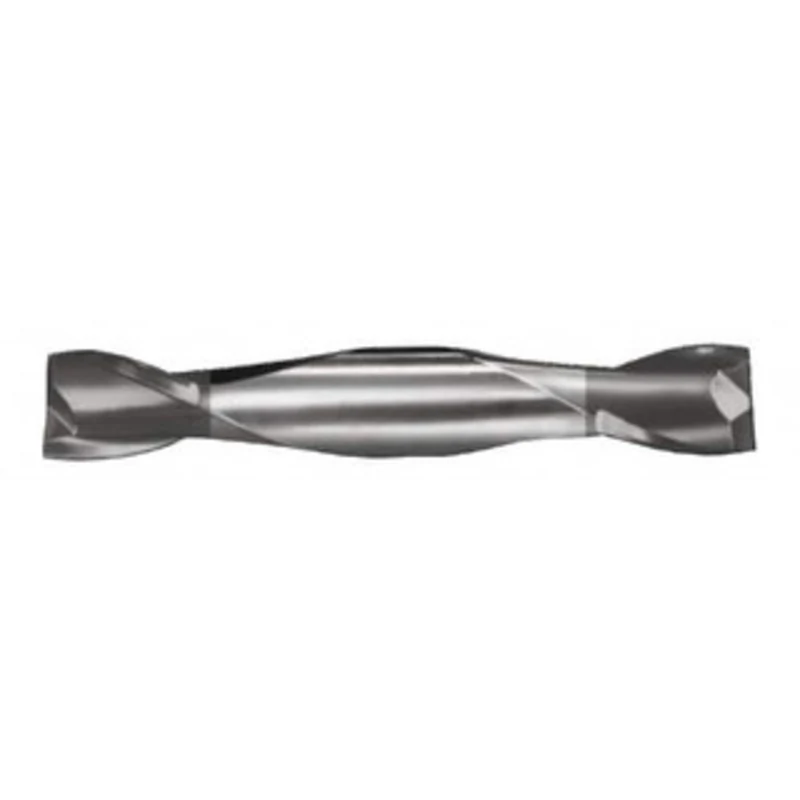

KYOCERA SGS 5/32, 5/16 LOC, 3/16 Shank Diam, 2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, AlTiN Finish, ...
End Mills

KYOCERA SGS 9/32, 1/2 LOC, 5/16 Shank Diam, 2-1/2 OAL, 2 Flute, Solid Carbide Square End Mill Double End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15 31331 – 05837083

Original price was: $67.50.Current price is: $20.25.

Availability: 6 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 5837083
CATEGORY: End Mills
Description

KYOCERA SGS 9/32″, 1/2″ LOC, 5/16″ Shank Diam, 2-1/2″ OAL, 2 Flute, Solid Carbide Square End Mill Double End, AlTiN Finish, Spiral Flute, 30 Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 15

Manufacturer Part #: 31331

S/N: 05837083

UNSPSC: 27112803

UPC: 691781313313

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)
0.2813
Mill Diameter (Inch)
9/32
Number Of Flutes
2
End Mill Material
Solid Carbide
Length of Cut (Decimal Inch)
0.5000
Length of Cut (Inch)
1/2
Shank Diameter (Inch)
5/16
Shank Diameter (Decimal Inch)
0.3125
Overall Length (Inch)
2-1/2
Centercutting
Yes
Cutting Direction
Right Hand
Flute Direction
Right Hand
Extended Reach
No
Helix Angle
30
Primary Workpiece Material Code
H, K, M, N, P, S
Variable Helix
No
Variable Index
No
Chipbreaker
No
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Material Grade
Micrograin
Length Type
Stub
Mill Diameter Tolerance
+0.000/-0.002 in
Shank Diameter Tolerance
-0.0001/-0.0004 in
Series
15
