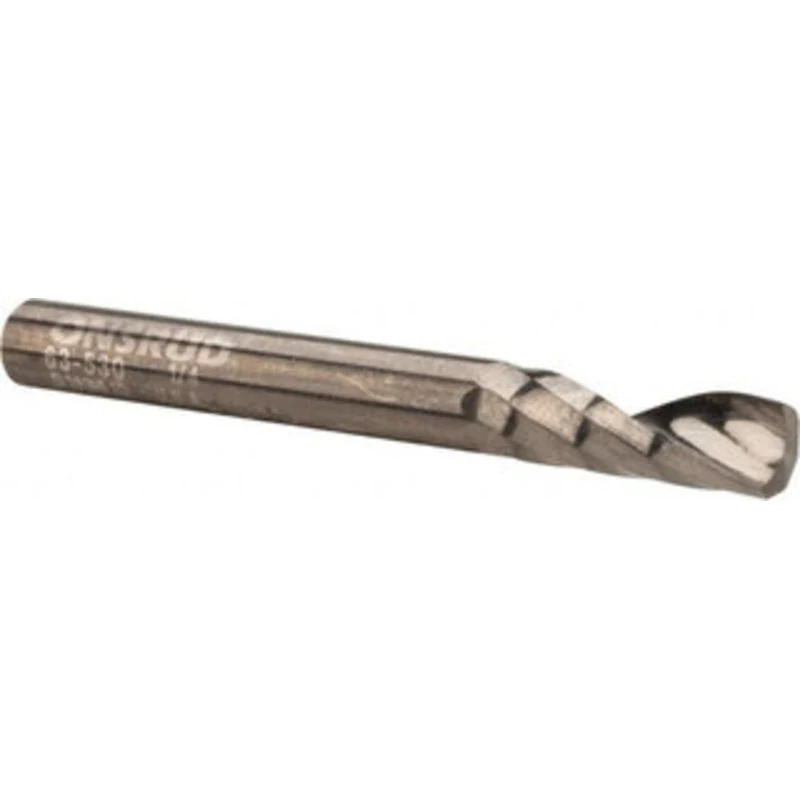

LMT Onsrud LP 1/4 Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 3/4 LOC, 1/4 Shank Diam, 2-1/2 OAL, Use on Acrylic 63-530 – 76383926

LMT Onsrud LP 1/4″ Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 3/4″ LOC, 1/4″ Shank Diam, 2-1/2″ OAL, Use on Acrylic

Manufacturer Part #: 63-530

S/N: 76383926

UNSPSC: 27112821

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Cutter Diameter (Decimal Inch)
0.2500
Cutter Diameter (Inch)
1/4
Overall Length (Inch)
2-1/2
Shank Diameter (Inch)
1/4
Bit Material
Solid Carbide
Material Application
Acrylic
Length of Cut (Inch)
3/4
Router Style
Single Edge
Flute Type
Upcut
Piloted
No
Shank Length (Decimal Inch)
1.7500
Shank Length (Inch)
1-3/4
Primary Workpiece Material
Hard Material
Cutting Direction
Right Hand
Series
63-500
Coating/Finish
Uncoated
Length Of Cut (Decimal Inch – 4 Decimals)
0.7500
