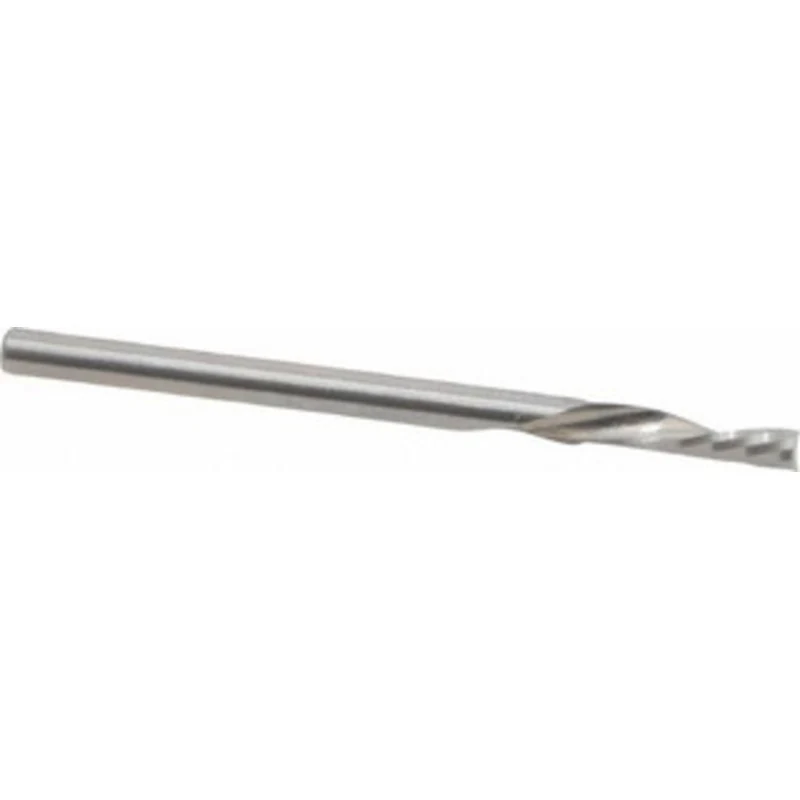

LMT Onsrud LP 1/8 Diam RH Solid Carbide 1-Flute Single Edge Downcut Spiral Router Bit Uncoated, 1/2 LOC, 1/8 Shank Diam, 2 OAL, Use on Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces 62-713 – 76525872

LMT Onsrud LP 1/8″ Diam RH Solid Carbide 1-Flute Single Edge Downcut Spiral Router Bit Uncoated, 1/2″ LOC, 1/8″ Shank Diam, 2″ OAL, Use on Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces

Manufacturer Part #: 62-713

S/N: 76525872

UNSPSC: 27112821

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Cutter Diameter (Decimal Inch)
0.1250
Cutter Diameter (Inch)
1/8
Overall Length (Inch)
2
Overall Length (Decimal Inch)
2.0000
Shank Diameter (Inch)
1/8
Bit Material
Solid Carbide
Material Application
Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces
Length of Cut (Inch)
1/2
Router Style
Single Edge
Flute Type
Downcut
Piloted
No
Shank Length (Decimal Inch)
1.5000
Shank Length (Inch)
1-1/2
Helix Angle
21
Primary Workpiece Material
Hard Material
Cutting Direction
Right Hand
Series
62-700
Coating/Finish
Uncoated
Length Of Cut (Decimal Inch – 4 Decimals)
0.5000
