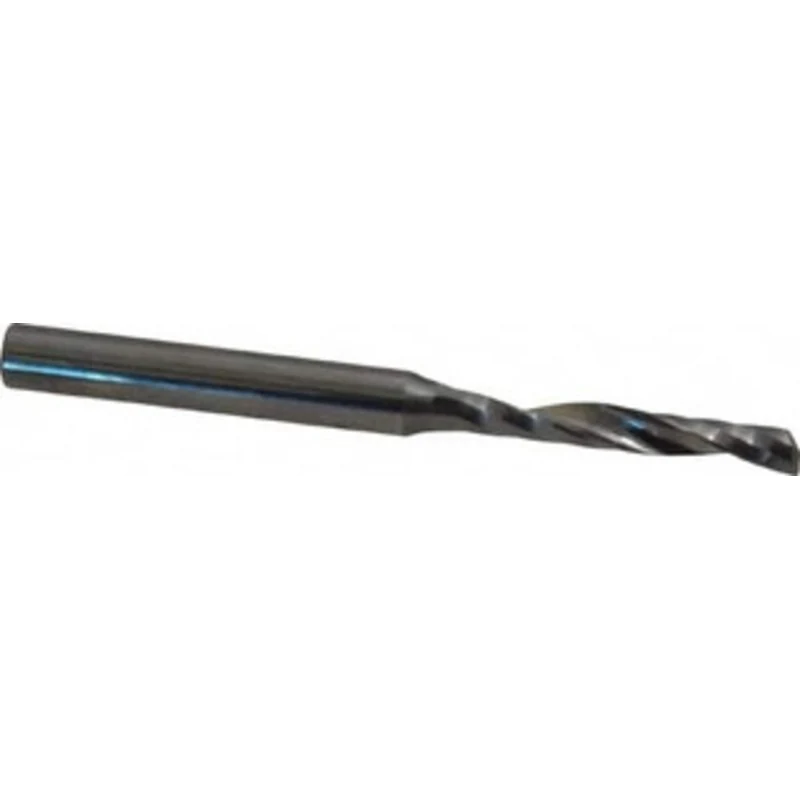

LMT Onsrud LP 3/16 Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 1-1/4 LOC, 1/4 Shank Diam, 3 OAL, Use on Aluminum, Plastics, Solid Surfaces, Wood 65-020 – 09885997

LMT Onsrud LP 3/16″ Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 1-1/4″ LOC, 1/4″ Shank Diam, 3″ OAL, Use on Aluminum, Plastics, Solid Surfaces, Wood

Manufacturer Part #: 65-020

S/N: 09885997

UNSPSC: 27112821

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Cutter Diameter (Decimal Inch)
0.1875
Cutter Diameter (Inch)
3/16
Overall Length (Inch)
3
Overall Length (Decimal Inch)
3.0000
Shank Diameter (Inch)
1/4
Bit Material
Solid Carbide
Material Application
Aluminum, Plastics, Solid Surfaces, Wood
Length of Cut (Inch)
1-1/4
Router Style
Single Edge
Flute Type
Upcut
Piloted
No
Shank Length (Decimal Inch)
1.7500
Shank Length (Inch)
1-3/4
Helix Angle
21
Cutting Direction
Right Hand
Series
65-000
Coating/Finish
Uncoated
Length Of Cut (Decimal Inch – 4 Decimals)
1.2500
