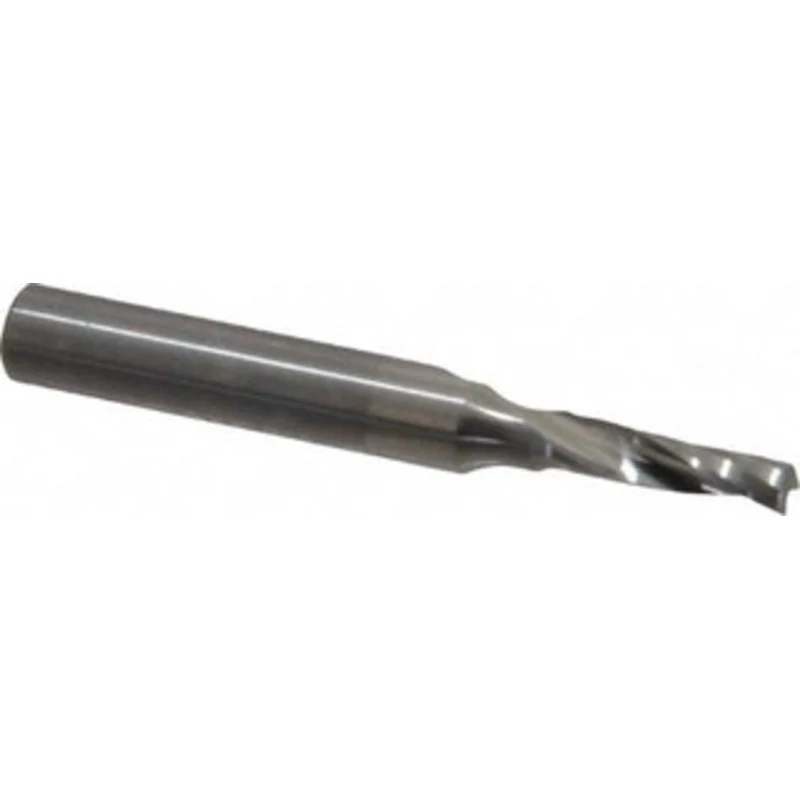

LMT Onsrud LP 5/32 Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 9/16 LOC, 1/4 Shank Diam, 2 OAL, Use on Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces 63-715 – 48793046

LMT Onsrud LP 5/32″ Diam RH Solid Carbide 1-Flute Single Edge Upcut Spiral Router Bit Uncoated, 9/16″ LOC, 1/4″ Shank Diam, 2″ OAL, Use on Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces

Manufacturer Part #: 63-715

S/N: 48793046

UNSPSC: 27112821

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Cutter Diameter (Decimal Inch)
0.1563
Overall Length (Inch)
2
Overall Length (Decimal Inch)
2.0000
Shank Diameter (Inch)
1/4
Bit Material
Solid Carbide
Material Application
Acrylic, Nylon, PVC, Polycarbonate, Solid Surfaces
Length of Cut (Inch)
9/16
Router Style
Single Edge
Flute Type
Upcut
Piloted
No
Shank Length (Decimal Inch)
1.4375
Shank Length (Inch)
1-7/16
Helix Angle
21
Primary Workpiece Material
Hard Material
Cutting Direction
Right Hand
Series
63-700
Coating/Finish
Uncoated
Length Of Cut (Decimal Inch – 4 Decimals)
0.5625
