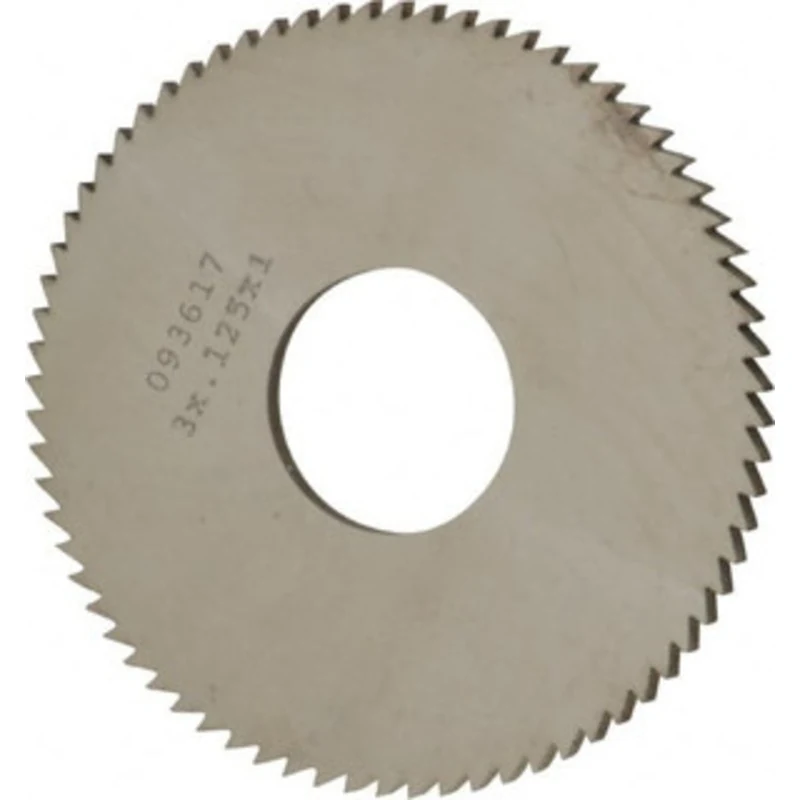

Made in USA 3 x 1/8, 1 Arbor, 72-Tooth Solid Carbide Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Concave Ground X7D125 – 03515384

Made in USA 3 x 1/8″, 1″ Arbor, 72-Tooth Solid Carbide Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Concave Ground

Manufacturer Part #: X7D125

S/N: 03515384

UNSPSC: 23241629

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Arbor
Number Of Teeth
72
Saw Material
Solid Carbide
Arbor Hole Diameter (Inch)
1
Arbor Hole Diameter
1in
Arbor Hole Diameter (Decimal Inch)
1.0000
Blade Diameter (Decimal Inch)
3.0000
Blade Diameter (Inch)
3
Blade Thickness (Decimal Inch)
0.1250
Blade Thickness (Inch)
1/8
Tooth Configuration
Straight
Rake Angle
5
Features
Concave Ground
Cutting Direction
Right Hand
Material Grade
C2
Blade Diameter Tolerance (Decimal Inch)
+0.0050 to -0.0050
Blade Thickness Tolerance (Decimal Inch)
+0.005 to -0.005
Arbor Hole Diameter Tolerance (Decimal Inch)
+0.001 to -0.000
Material Application
Metal
Coating/Finish
Bright/Uncoated
