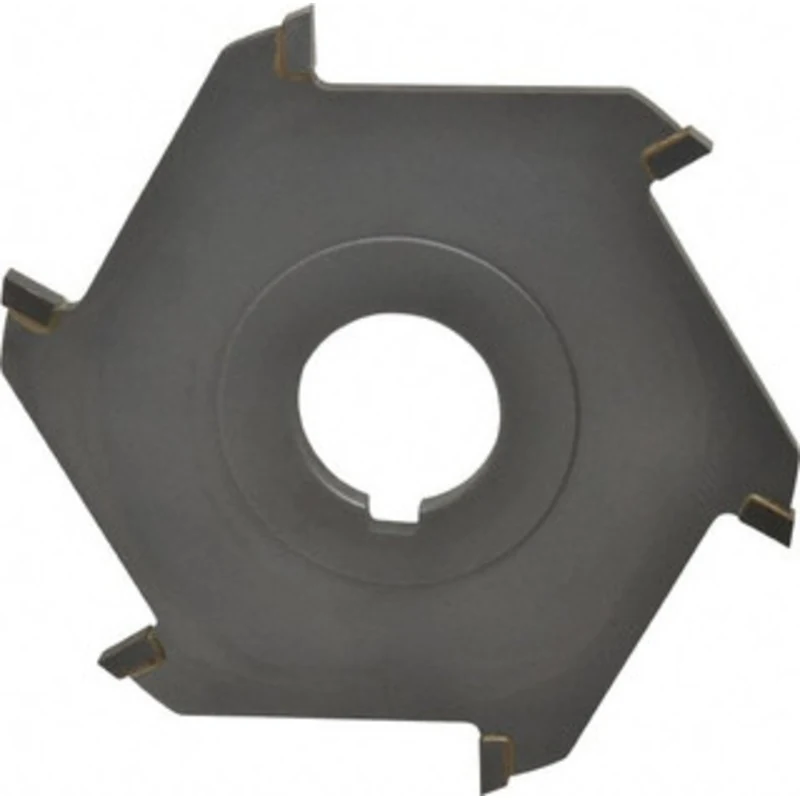

Made in USA 4 x 3/16, 1 Arbor, 6-Tooth Carbide-Tipped Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Contains Keyway 2550-46 – 73516460

Made in USA 4 x 3/16″, 1″ Arbor, 6-Tooth Carbide-Tipped Slitting & Slotting Saw Uncoated, RH Cut, Straight Teeth, Contains Keyway

Manufacturer Part #: 2550-46

S/N: 73516460

UNSPSC: 23241629

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Arbor
Number Of Teeth
6
Saw Material
Carbide Tipped
Arbor Hole Diameter (Inch)
1
Arbor Hole Diameter
1in
Arbor Hole Diameter (Decimal Inch)
1.0000
Blade Diameter (Decimal Inch)
4.0000
Blade Diameter (Inch)
4
Blade Thickness (Decimal Inch)
0.1875
Blade Thickness (Inch)
3/16
Tooth Configuration
Straight
Features
Contains Keyway
Cutting Direction
Right Hand
Series
2550
Blade Diameter Tolerance (Decimal Inch)
+0.0625 to -0.0000
Blade Thickness Tolerance (Decimal Inch)
+0.001 to -0.000
Arbor Hole Diameter Tolerance (Decimal Inch)
+0.001 to -0.000
Material Application
Aluminum, Brass, Bronze, Magnesium, Non-Metals, Plastics, Zinc
Coating/Finish
Bright/Uncoated
