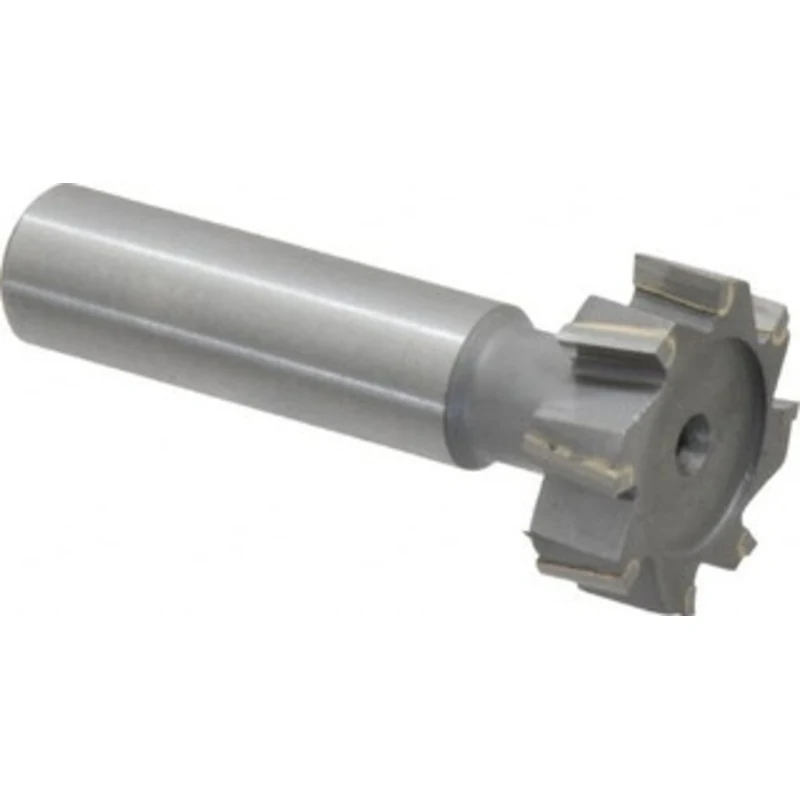

Made in USA ANSI 1008 (Old Std # B) 1 Cut Diam, 5/16 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2-5/16 OAL, 8 Teeth STC1008 – 02451904

Made in USA ANSI 1008 (Old Std # B) 1″ Cut Diam, 5/16″ Cut Width, 1/2″ Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2-5/16″ OAL, 8 Teeth

Manufacturer Part #: STC1008

S/N: 02451904

UNSPSC: 23241631

UPC: 648672510085

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Carbide Tipped
Cutter Diameter (Inch)
1
Cutter Diameter (Decimal Inch)
1.0000
Tooth Configuration
Staggered
Cutting Width (Inch)
5/16
Cutting Width (Decimal Inch)
0.3125
Weldon Flat
No
Shank Diameter (Inch)
1/2
Overall Length (Inch)
2-5/16
American Standard Number
1008
Oversized For Resharpening
No
Old Standard Number
B
Cutter Width Tolerance
+0.0000 to 0.0005 in
Cutter Material Grade
Micrograin
Coating/Finish
Uncoated
Number Of Teeth
8
