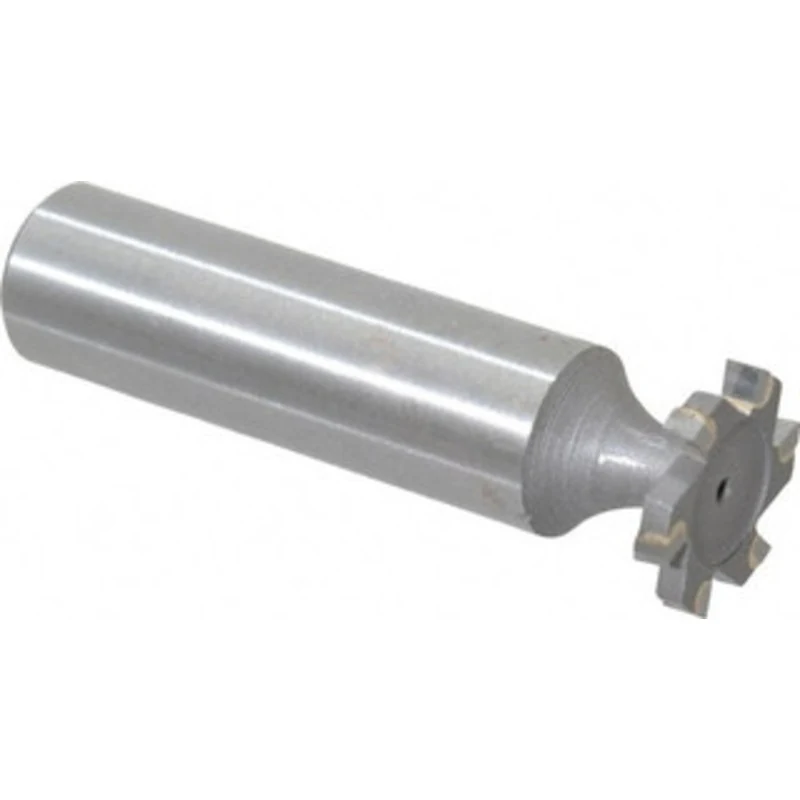

Made in USA ANSI 305 (Old Std # 4) 5/8 Cut Diam, 3/32 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2.0938 OAL, 6 Teeth STC305 – 73040040

Made in USA ANSI 305 (Old Std # 4) 5/8″ Cut Diam, 3/32″ Cut Width, 1/2″ Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2.0938″ OAL, 6 Teeth

Manufacturer Part #: STC305

S/N: 73040040

UNSPSC: 23241631

UPC: 648672530502

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Carbide Tipped
Cutter Diameter (Inch)
5/8
Cutter Diameter (Decimal Inch)
0.6250
Tooth Configuration
Staggered
Cutting Width (Inch)
3/32
Cutting Width (Decimal Inch)
0.0938
Weldon Flat
No
Shank Diameter (Inch)
1/2
Overall Length (Decimal Inch)
2.0938
American Standard Number
305
Oversized For Resharpening
No
Old Standard Number
4
Cutter Width Tolerance
+0.0000 to 0.0005 in
Cutter Material Grade
Micrograin
Coating/Finish
Uncoated
Number Of Teeth
6
