Home › Cutting Tools & Abrasives › Cutting Tools Other › Made in USA ANSI 506 (Old Std # 8) 3/4 Cut Diam, 5/32 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2.1563 OAL, 6 Teeth STC506 – 73040099
Made in USA ANSI 506 (Old Std # 8) 3/4 Cut Diam, 5/32 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter C...
Cutting Tools Other

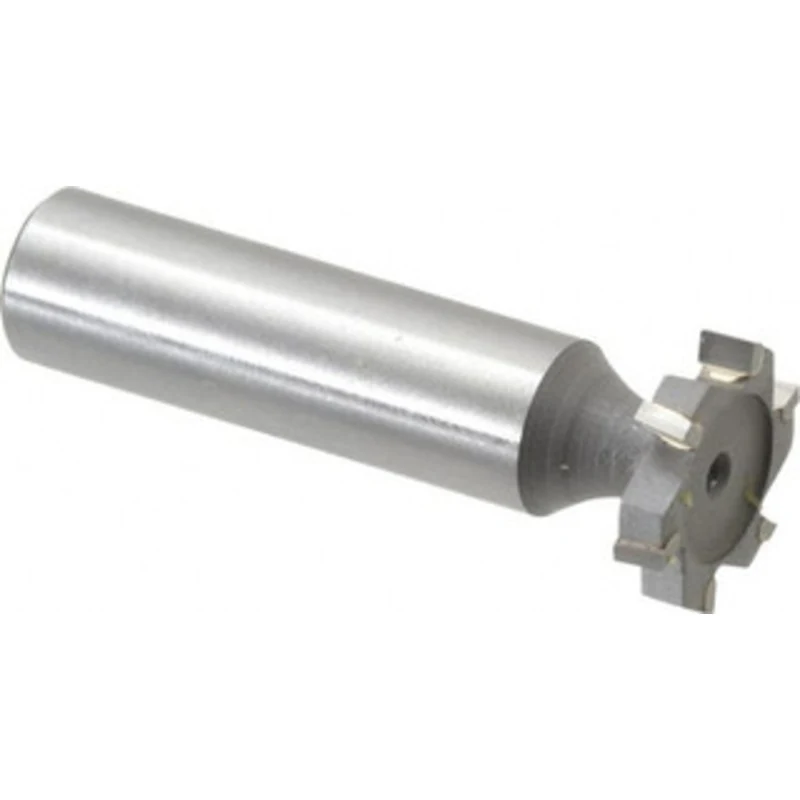

Made in USA ANSI 506 (Old Std # 8) 3/4 Cut Diam, 5/32 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2.1563 OAL, 6 Teeth STC506 – 73040099

Original price was: $430.13.Current price is: $112.19.

Availability: 5 in stock

🚚 Free Shipping over $59
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 73040099
CATEGORY: Cutting Tools Other
Description

Made in USA ANSI 506 (Old Std # 8) 3/4″ Cut Diam, 5/32″ Cut Width, 1/2″ Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2.1563″ OAL, 6 Teeth

Manufacturer Part #: STC506

S/N: 73040099

UNSPSC: 23241631

UPC: 648672550609

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Carbide Tipped
Cutter Diameter (Inch)
3/4
Cutter Diameter (Decimal Inch)
0.7500
Tooth Configuration
Staggered
Cutting Width (Inch)
5/32
Cutting Width (Decimal Inch)
0.1563
Weldon Flat
No
Shank Diameter (Inch)
1/2
Overall Length (Decimal Inch)
2.1563
American Standard Number
506
Oversized For Resharpening
No
Old Standard Number
8
Cutter Width Tolerance
+0.0000 to 0.0005 in
Cutter Material Grade
Micrograin
Coating/Finish
Uncoated
Number Of Teeth
6
