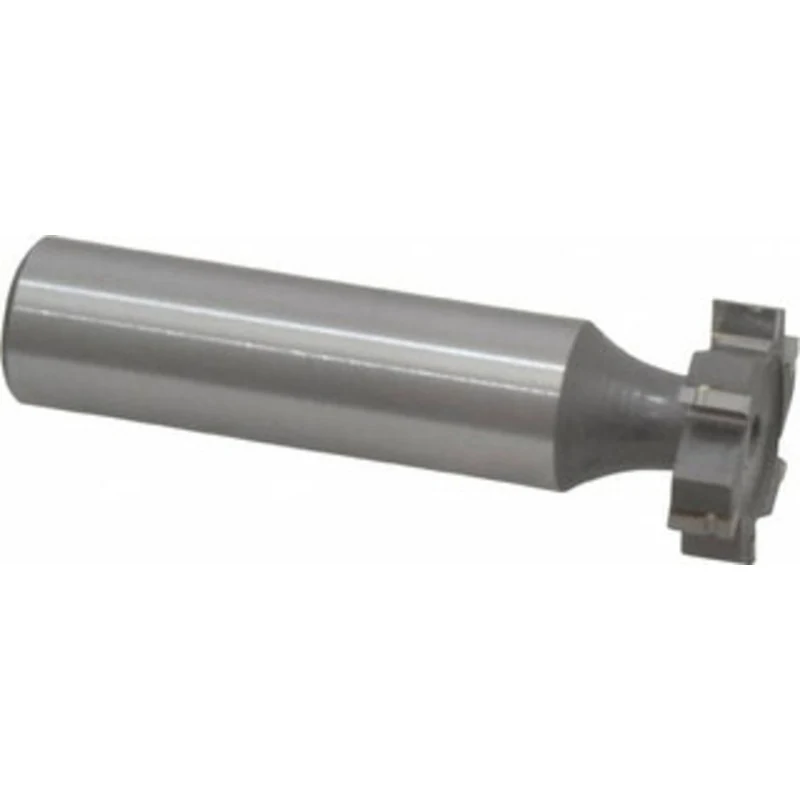

Made in USA ANSI 606 (Old Std # 9) 3/4 Cut Diam, 3/16 Cut Width, 1/2 Shank, Straight-Tooth Woodruff Keyseat Cutter Carbide-Tipped, TiN Finish, 2-3/16 OAL, 6 Teeth TC606-TIN – 01916063

Made in USA ANSI 606 (Old Std # 9) 3/4″ Cut Diam, 3/16″ Cut Width, 1/2″ Shank, Straight-Tooth Woodruff Keyseat Cutter Carbide-Tipped, TiN Finish, 2-3/16″ OAL, 6 Teeth

Manufacturer Part #: TC606-TIN

S/N: 01916063

UNSPSC: 23241631

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Carbide Tipped
Cutter Diameter (Inch)
3/4
Cutter Diameter (Decimal Inch)
0.7500
Tooth Configuration
Straight
Cutting Width (Inch)
3/16
Cutting Width (Decimal Inch)
0.1875
Weldon Flat
No
Shank Diameter (Inch)
1/2
Overall Length (Inch)
2-3/16
American Standard Number
606
Oversized For Resharpening
No
Old Standard Number
9
Cutter Width Tolerance
+0.0000 to 0.0005 in
Cutter Material Grade
Micrograin
Coating/Finish
TiN
Number Of Teeth
6
