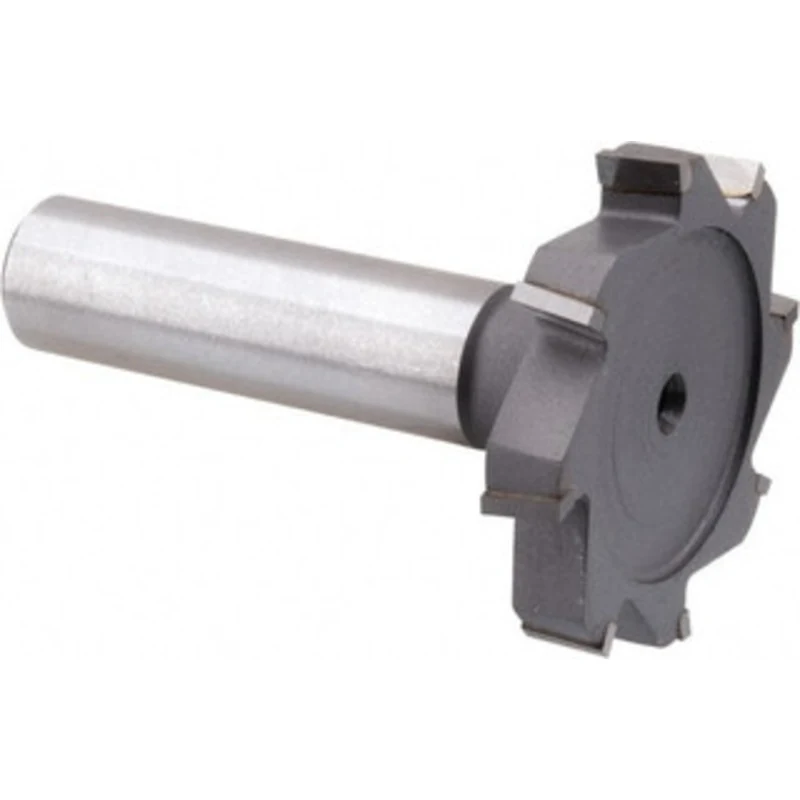

Made in USA ANSI 812 (Old Std # 24) 1-1/2 Cut Diam, 1/4 Cut Width, 1/2 Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2-1/4 OAL, 8 Teeth STC812 – 02037612

Made in USA ANSI 812 (Old Std # 24) 1-1/2″ Cut Diam, 1/4″ Cut Width, 1/2″ Shank, Staggered-Tooth Woodruff Keyseat Cutter Carbide-Tipped, Uncoated, 2-1/4″ OAL, 8 Teeth

Manufacturer Part #: STC812

S/N: 02037612

UNSPSC: 23241631

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Connection Type
Shank
Cutter Material
Carbide Tipped
Cutter Diameter (Inch)
1-1/2
Cutter Diameter (Decimal Inch)
1.5000
Tooth Configuration
Staggered
Cutting Width (Inch)
1/4
Cutting Width (Decimal Inch)
0.2500
Weldon Flat
No
Shank Diameter (Inch)
1/2
Overall Length (Inch)
2-1/4
American Standard Number
812
Oversized For Resharpening
No
Old Standard Number
24
Cutter Width Tolerance
+0.0000 to 0.0005 in
Cutter Material Grade
Micrograin
Coating/Finish
Uncoated
Number Of Teeth
8
