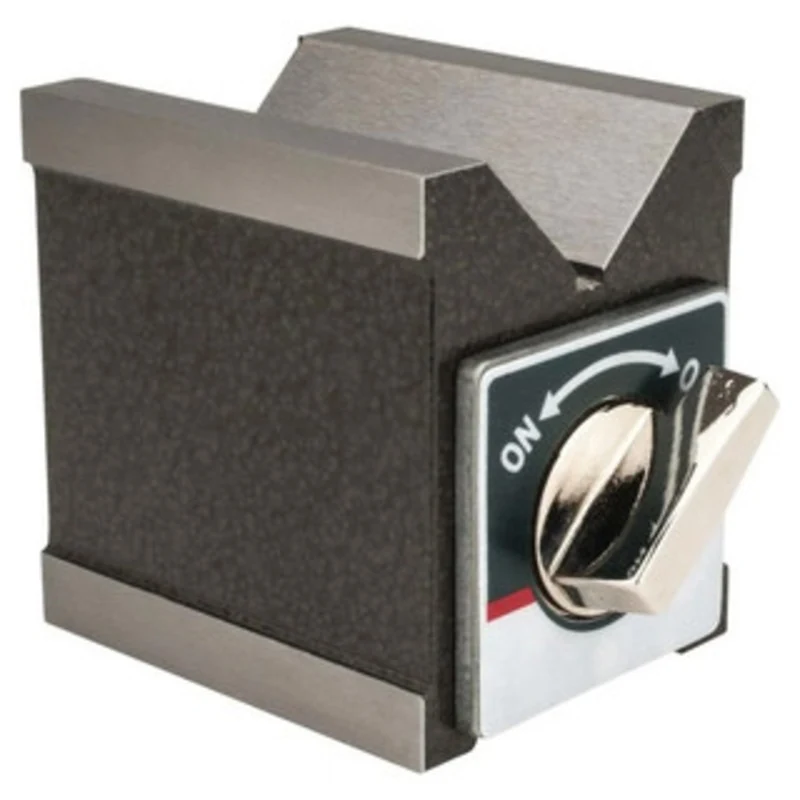

Magnetic V-Block, 2-3/4 Length – 51-175-8

Magnetic V-Block, 2-3/4″ Length

1-9/32″ Max Capacity, 90 Angle, V-Block
2-3/4″ Long x 60mm Wide x 73mm High, Sold as Individual

Features:

• Lever operated on-off switch eliminates need for separate wrench
• Precision finish holder for scribing, grinding, cutting and finishing operations
• V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
• D.O.T. Regulated. Shipped via ground freight only

Specifications:

Type
V-Block

Sold As
Individual

Overall Length (mm)
69.85

Overall Length (Inch)
2-3/4

Overall Width (mm)
60.00

Overall Width (Decimal Inch)
2.3622

Overall Height (mm)
73.00

Overall Height (Decimal Inch)
2.8740

V Angle
90.00

Maximum Capacity of V (mm)
32.54

Maximum Capacity of V (Inch)
1-9/32

Magnetic
Yes
