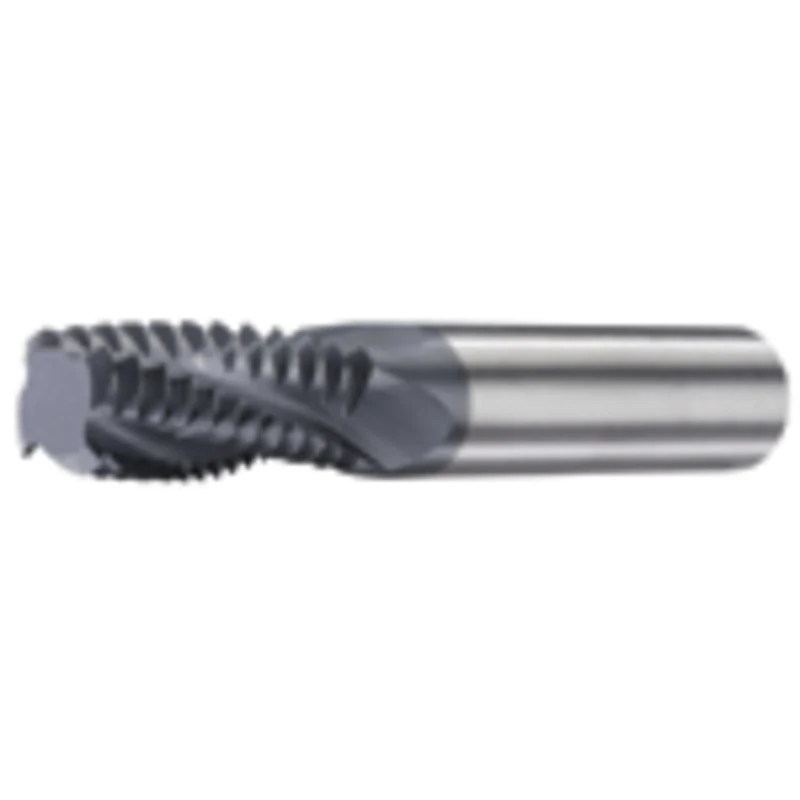

Micro-100 Helical Flute Thread Mills Solid Carbide – TM-250-20X

Cutter Diameter D1

.180″

Length of Cut L2

1/2″

Minimum Thread & Pitch

1/4″-20

Overall Length L1

2-1/2″

Shank Diameter D2

1/4″

Helical flute design for reduced
cutting forces, smooth cuts, longest tool life,
and maximum thread milling performance.
Cuts right hand and left hand high quality threads.

Tolerance:

Shank Diameter:…-.0001 to -.0003″

Cutter Diameter………..0005″

Length of Cut……..050 to.000″

Overall Length………….015″

T.I.R. Maximum…………0005″
