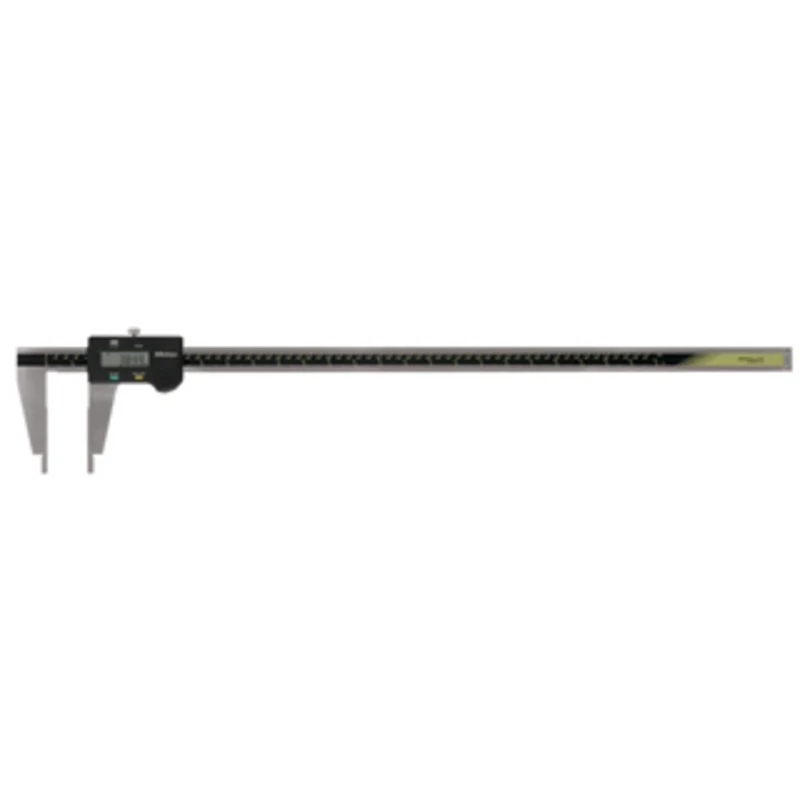

Mitutoyo ABSOLUTE Digimatic Caliper, 0(.5)-24/0(20)-600mm – 550-225-10

Range

0 (.5) – 24″ / 0 (20) – 600mm

SPC Output

Yes

Accuracy

.002″

Remarks

–

Mass

1290 g

Mitutoyo ABSOLUTE Digimatic Caliper, 0(.5)-24″/0(20)-600mm – 550-225-10

160-with Nib Style Jaws

This is a Digimatic caliper with nib-style jaws that lets you measure inside dimensions.
It offers you the following benefits:

• Rounded measuring surfaces enable you to measure inside
  dimensions.
• ABSOLUTE System delivers reliable measurements.

Technical Data:

Range
0 (.5) – 24″ / 0 (20) – 600mm
Inside measuring from
12.8 mm/0.504″
Accuracy
0.002″
Mass
1290 g
Digital step
0,0005″/0,01 mm
Display
LCD, character height 9 mm (200 mm)
11 mm (300 mm)
10 mm (>300 mm)
Max. response speed
Unlimited
Battery life
approx. 5 years, 3,5 years (>300 mm)
Delivered
In a case, including 1 battery

Data output
Yes

ORIGIN (ABS-Zero)
Yes

OFFSET
Yes

Low voltage alarm
Yes

Digital/Analog
Digital

Inch-Metric
Inch/Metric

Accuracy
0,05 mm

Functions
Non IP67 model

L
780 mm

a
100 mm

b
18 mm

c
25 mm

See all Mitutoyo ABSOLUTE Digimatic Calipers Series 550
