Range
2″ / 50.8mm
Model
ID-C150RXB
Accuracy
0.006mm
Measuring Force
2.3N or less

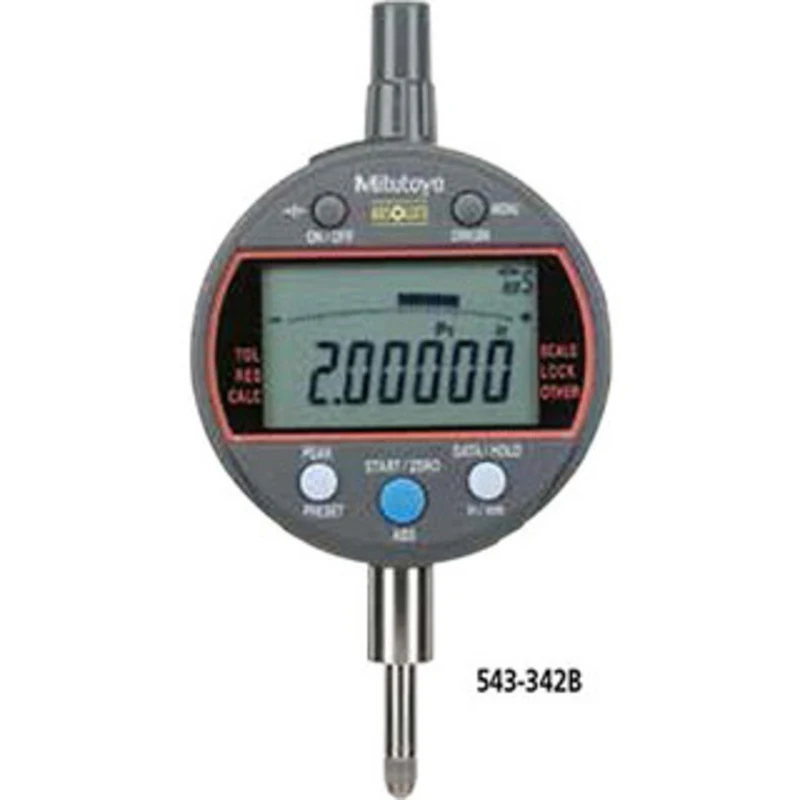

Mitutoyo ABSOLUTE Digimatic Indicator ID-C, Series 543 Calculation Type
Features:
- The new Calculation-Type Digimatic Indicator features both a Key- Lock and Parameter-Lock. This is designed to prevent accidental changing of settings during operation.
- Improved parameter setting software makes it even easier to set all of the available parameters and determine and upload the proper coefficients for calculation.
- FAST measurement frequency allows the user to increase the number of readings per second from 10 to 50, allowing higher accuracy meaurements of TIR and MAX/MIN.
- An analog bar provides easy to read values when scanning for Max, Min, and TIR Values.
- The Absolute Digimatic indicator performs internal calculations using the formula Ax+B+Cx-1 (assuming spindle displacement as x) while the specified coefficients A, B and, C can be set with respect to the purpose of measurement or dimensions of the fixtures. This unique features allows you to read your measurements directly, without fumbling for conversions.
Technical Data:
- Accuracy: Refer to the list of specifications below
- Resolution: 12 Steps
.00005/.0001/.0005″
0.001/0.01mm
- Display: LCD
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max. response speed: Unlimited
- Measuring force: Refer to the list of specifications below
- Battery: CR2032 (1 pc.), 05SAA217
- Battery life: Approx. 12 months under normal use
- IP Rating: Equivalent to IP-42*1
*1 A protection class indication (IP=lnternational Protection) is based on the IEC 60529 /DIN40050 part 1/JIS D0207, C0920. The level indicated is valid only if the output connector cap is installed.
Function:
- Key Lock
- Parameter Lock
- PC-USB Input
- Analog Bar
- FAST measurement frequency
- Preset (up to 3 values)
- Tolerance Judgment
- Peak Detection
- Calculation
- inch/mm conversion (on inch/metric models only)
- Counting direction switching
- Data Output
- Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error
Optional Accessories:
- 905338 – Connecting Cable (1m)
- 905409 – Connecting Cable (2m)
- 21EZA313 -USB cable and Outline of Parameter Setting Software
- 21EZA198 – Spindle lifting lever (12.7mm ISO/JIS type)
- 21EZA199 – Spindle lifting lever (12.7mm ASME/AGD type)
- 540774 – Spindle lifting cable
Specifications:
METRIC – Stem 8mm, M2.5 x 0.45 Thread(ISO/JIS type)
Resolution
Order No.*
Range
Model
Accuracy
Measuring Force
0.001/0.01mm
Selectable
543-598B
2″ / 50.8mm
ID-C150RXB
0.006mm
2.3N or less
* Flat Back
See all Mitutoyo ABSOLUTE Digimatic Indicators ID-C, Series 543 Calculation Type
| Accuracy |
Refer to the list of specifications below |
| Resolution |
12 Steps.00005/.0001/.0005″ 0.001/0.01mm |
| Display |
LCD |
| Length standard |
ABSOLUTE electrostatic capacitance type linear encoder |
| Max. response speed |
Unlimited |
| Measuring force |
Refer to the list of specifications below |
| Battery |
CR2032 (1 pc.), 05SAA217 |
| Battery life |
Approx. 12 months under normal use |
| IP Rating |
Equivalent to IP-42*1 |
| Alarm |
Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error |
