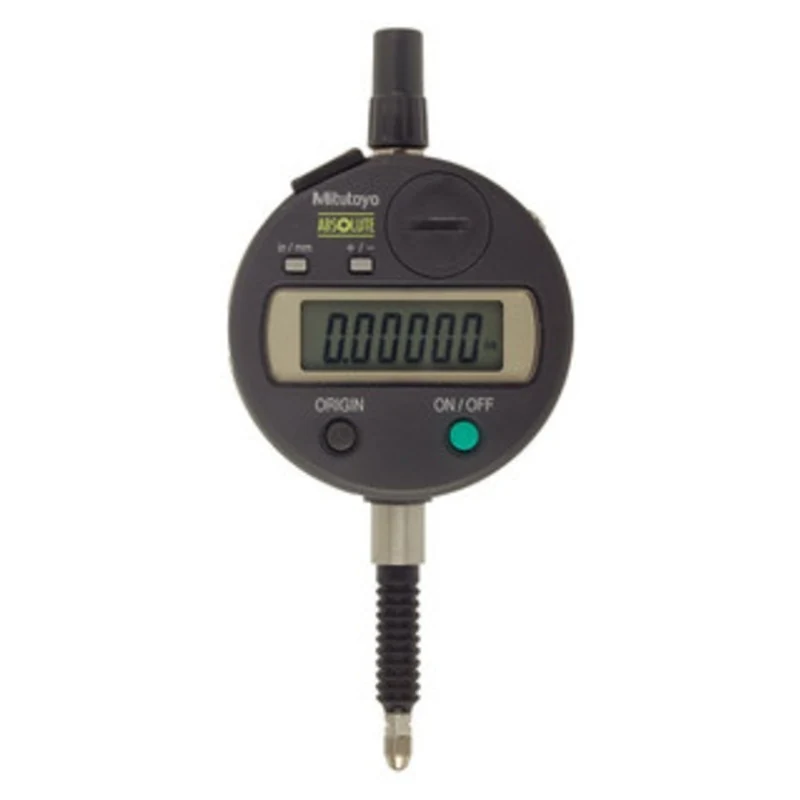

Mitutoyo ABSOLUTE Digimatic Indicator ID-S Series 543 – 543-796

Model No

ID-S112PEX

Resolution

0.00005″

Range

0.5″ / 12.7mm

Accuracy

0.00012″

Stem Dia

3/8″

Force

2.5N or less

Contact Point

4-48 UNF Thread

Mitutoyo ABSOLUTE Digimatic Indicator ID-S Series 543 with Simple Design -543-796

Features:

• As compact as standard Series 2 dial indicators
• After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
• Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
• SPC data output

Technical Data:

Accuracy
Refer to the list of specifications.

Resolution
0.01mm
0.001mm
.0005″/0.01mm
.0001″/0.001mm
or.00005″/0.001mm

Display
LCD

Length standard
ABSOLUTE electrostatic capacitance type linear encoder

Max. response speed
Unlimited

Measuring force
Refer to the list of specifications

Battery
SR44 (1 pc.), 938882

Battery life
Approx. 20,000 hours under normal use

Dust/Water protection level
IP42 (IP53:543-794, 543-795, 543-796)

Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only)

Alarm
Low voltage, Counting value composition error, Over-flow error

Optional Accessories:

Type
Inch/Metric (ANSI/AGD)
Stem dia. 3/8, #4-48 UNF Thread

Accessory
Item Number

Back-Lug
101306

Back-Flat
101039

Lifting Lever
21EZA199

Lifting Cable
540774

Lifting Knob
21EZA150

Connecting Cable 1m
905338

Connecting Cable 2m
905409

SR44 Battery
938882
