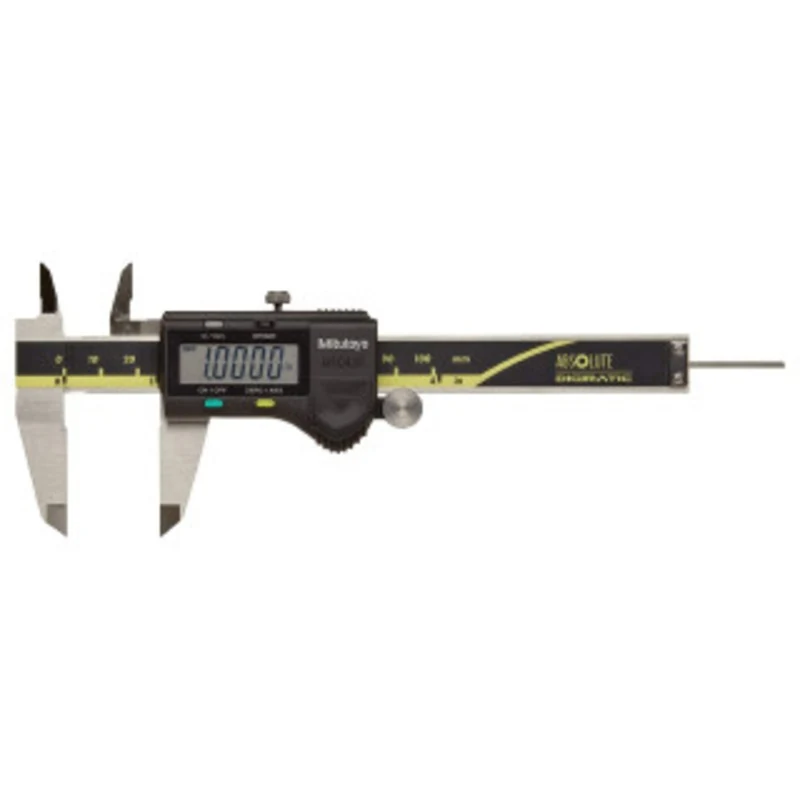

Mitutoyo Digimatic Caliper 500-195-20, Inch/Metric, 0-4 – 10-856-3

Range

0 – 4″ / 0 – 100 mm

Accuracy

0.001″

SPC Output

No

Jaws

Standard

Mitutoyo Digimatic Caliper 500-195-20, Inch/Metric, 0-4″

Range: 0-4″

Features:

• Available with or without SPC data output.
• Power on Absolute Encoder eliminates zero setting on power up.
• Large switchable inch/metric 0.0005″/0.01 mm LCD display for easy reading.
• Hardened stainless steel throughout for longer life and corrosion resistance.
• The thumb roll provides a consistent “feel” for more accurate measurements.
• OD,ID, step and depth measurements increase the tool’s versatility. (no depth bar over 12″ range.)
• Zero and absolute measurements let you match the tool to your measuring needs.
• 20,000 Hr. average battery life reduces operating costs and trips to crib.
• The epoxy embedded scale eliminates rack and pinion jams.
• Resolution: 0.005″/0.01 mm.
• Repeatability: 0.005″/0.01 mm.
• * standard ID Jaws, Carbide OD Jaws.
• + IP67 Model.
• ++ Without thumb roller.
• Available from stock with NIST traceable certificate of accuracy.
