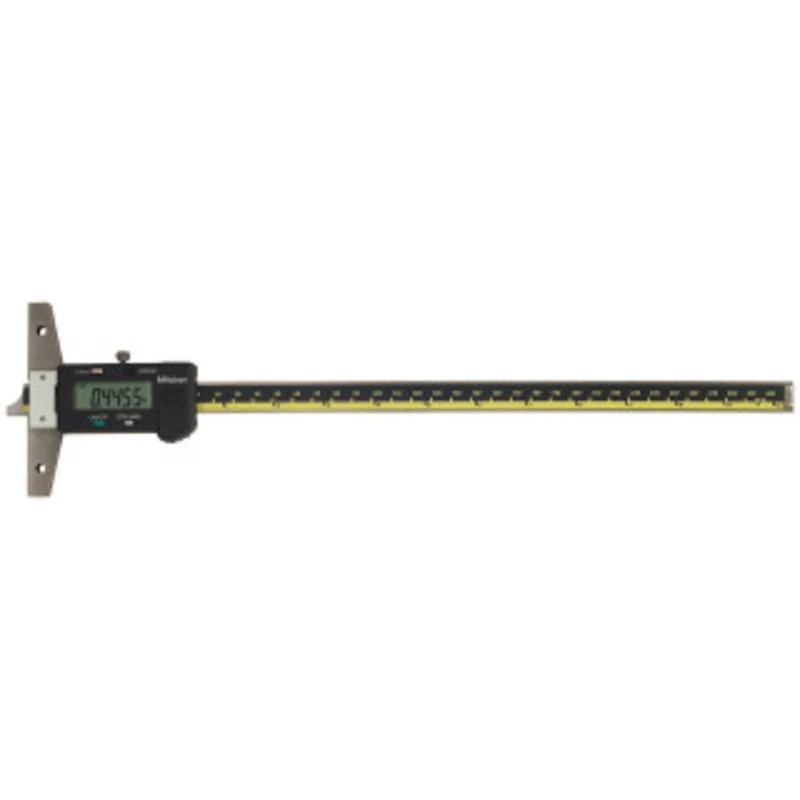

Mitutoyo Digimatic Depth Gage, 12/300mm – 571-213-30

Range

0 – 12″ / 0 – 300 mm

Resolution

0.0005″ / 0.01 mm

Accuracy

0.0015″

Style

Point

Mitutoyo Digimatic Depth Gage, 12″/300mm – 571-213-30

Features:

• ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery
• Base and measuring faces are hardened and micro-lapped
• Optional wider extension base are available. (up to 450mm range models)
• With SPC data output

Technical Data:

• Resolution: 0.01mm or.0005″/0.01mm
• Repeatability: 0.01mm
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance (electromagnetic induction)* type linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 20,000 hours (3 years)* under normal use
• Dust/Water protection level: IP67*
  *Coolant Proof models

Function:

• Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional Accessories:

• # 959143: Data hold unit
• # 959149: SPC cable with data switch (40″ / 1m)
• # 959150: SPC cable with data switch (80″ / 2m)
• # 05CZA624: SPC cable with data switch (40″ / 1m) *
• # 05CZA625: SPC cable with data switch (80″ / 2m) *

* for IP67 models
