Mitutoyo Disk Micrometer Non-Rotating Spindle Type, 0-1.2/0-30.48mm – 369-421

Range

0 – 1.2″ / 0 – 30 mm

Resolution

0.00005″ / 0.001 mm

Type

Disc

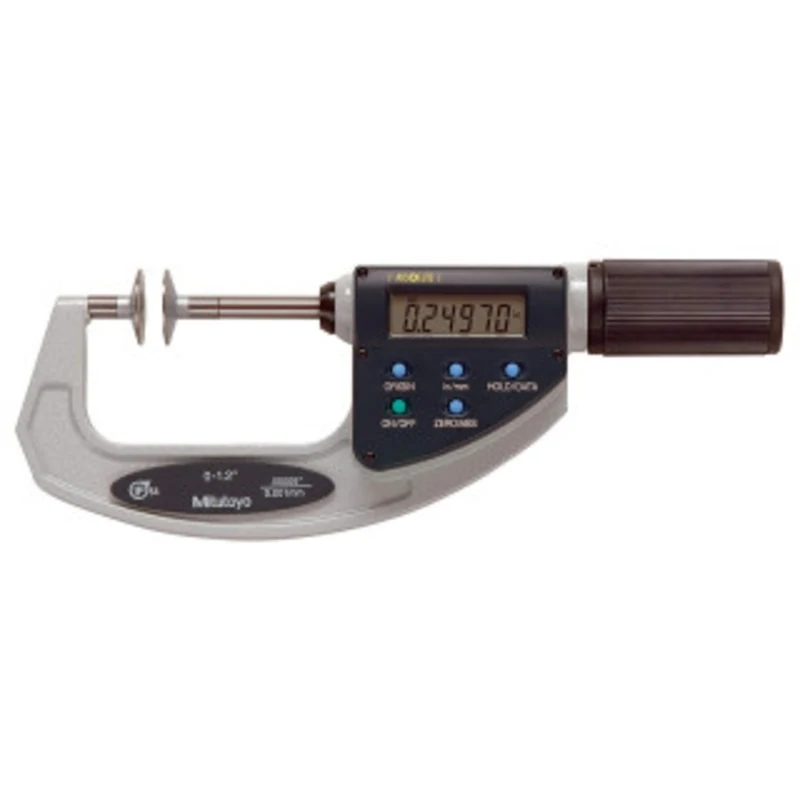

Mitutoyo Disk Micrometer Non-Rotating Spindle Type
0-1.2″/0-30.48mm – 369-421

Features

• The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears.
• Non-rotating spindle eliminates torque on workpiece.
• With standard bar except 0 – 15mm, 0 –.6 0 – 25mm, 0 – 1, 0 – 300mm & 0 – 1.2 model
• Speedy spindle feed of 10mm/rev. (Quickmike type).
• Diameter of measuring disk: 20mm /.787
• With Ratchet Stop for constant force.
• With SPC output (Series 369).
• Supplied in fitted plastic case

Technical Data

Accuracy: Refer to the list of specifications.

Resolution*:0.001mm or.00005″/0.001mm
Graduation**: 0.01mm or.001″
Flatness: 1m /.00004
Parallelism: 4m /.00016 for models up to 50mm / 2
6m /.00024 for models over 50mm / 2
Measurable module: 0.5-6
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
(1 year: Quickmike type, 3 years: Quickmike
type with fine-loading)
Series 227: Refer to page 27 for more information.
*Digital models **Analog models

Function of Digital Model
Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
