Range
0-1.2″/0-30mm
Resolution
.00005″/.001mm
Type
Standard

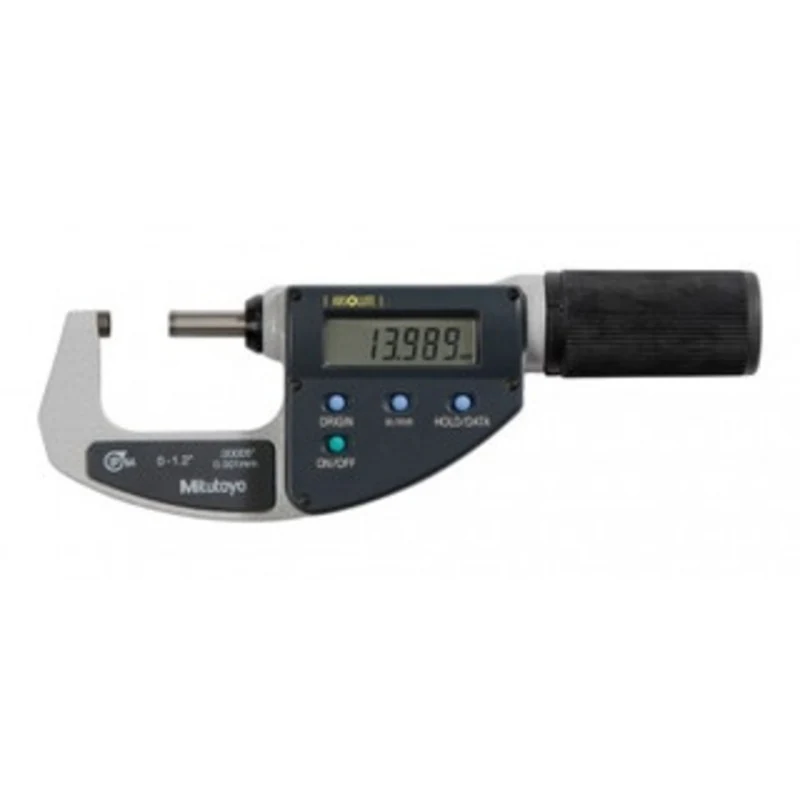

Mitutoyo Quickmike 0-1.2″/0-30mm – 293-676
An extremely rapid action, water-resistant Mitutoyo digital micrometer that enables measurements to be made many times faster than a standard micrometer. ABSOLUTE System scale for error free, high-speed measurement. The frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. SPC data output.
- Type Standard
- Range0-1.2″/0-30mm
- Actual Range 0-30.48mm / 0-1.2″
- Resolution 0.001mm /.00005″
- Accuracy 2m /.0001″
- Data Output Yes
- Display LCD
- Flatness 0.3m /.000012″
- Measuring Faces Carbide
- Parallelism 2m /.00008″
- Protection IP54
- Battery SR44
- Battery Life Approx. 1.2 years under normal use
- Functions Origin-set, Zero-set, Inch/mm, Data Hold, Automatic Power On/Off, Data Output, Low Voltage alarm, Counting Value Composition Error alarm
- Non-rotating spindle and the new ratchet friction thimble.
- Speedy spindle feed of 10mm/rev.
- ABSOLUTE System linear scale.
- IP54 dust/water protection (when not connected with data output cable).
- SPC data output.
