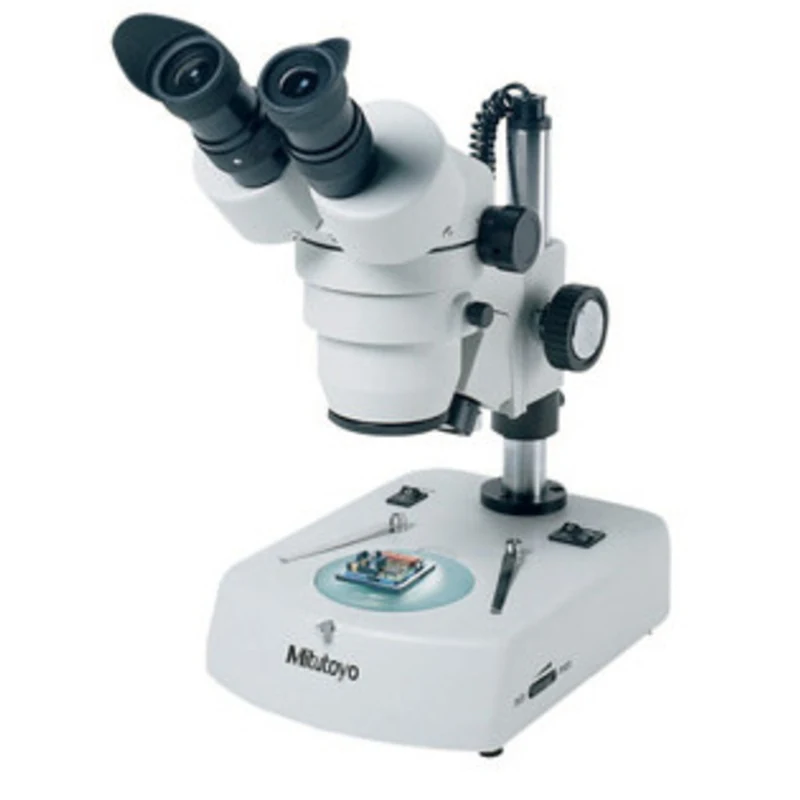

Mitutoyo Stereo Microscope MSM-414TL Series 377, Trinocular – 377-974A

Mitutoyo Stereo Microscope MSM-414TL Series 377, Trinocular – 377-974A

• Continuous 1X – 4X magnification
• Image always in focus throughout zoom range
• Crisp, erect images with high resolution and excellent stereoscopic effect
• Stereo-tube can be rotated a full 360, for viewing at any angle
• Bilateral zoom control knob adds convenience and increases operator efficiency
• Diopter adjustment for both eyepieces
• Binocular Tube Inclination: 45
• Focusing Range: 1.46″” (37mm)
• Interpupillary Adjustable Range: 2.12″” – 2.99″” (54mm – 76mm)
• Optional zoom ranges from 2.5X – 10X to 30X – 120X The MSM-414L is a traditional binocular stereo microscope for industrial, medical, and classroom applications. It is ideal for electrical small part inspection, assembly, and medical/biological dissection.

Specifications:

Microscopes

Model
MSM-414TL

Order Number
377-974A

Optical tube
Trinocular

Total Magnification
10 x 40

Eyepiece
10X (377-016)

Objective
1x – 4x

Working distance
80mm

Field of view
20mm – 5mm

Dimension
13.2″ x 6.7″ x 9.3″

Mass
13.2 lbs (6kg)

Stands

Order Number
Description

377-412
Pole Type Stand (top: 12V/10W flat filament tungsten, bottom: 5W Fluorescent)

377-413
–

377-414
Fixed Arm Stand (top: 12V/10W flat filament tungsten, bottom: 5W fluorescent)

377-415
–

377-416
Fixed Arm Stand (top: 5W fluorescent, bottom: 5W fluorescent)

64PMI189*
Digital camera,2.0 Megapixel,USB 2.0 Interface

See all Mitutoyo Stereo Microscopes MSM-414L/MSM-414TL Series 377 & Stands
