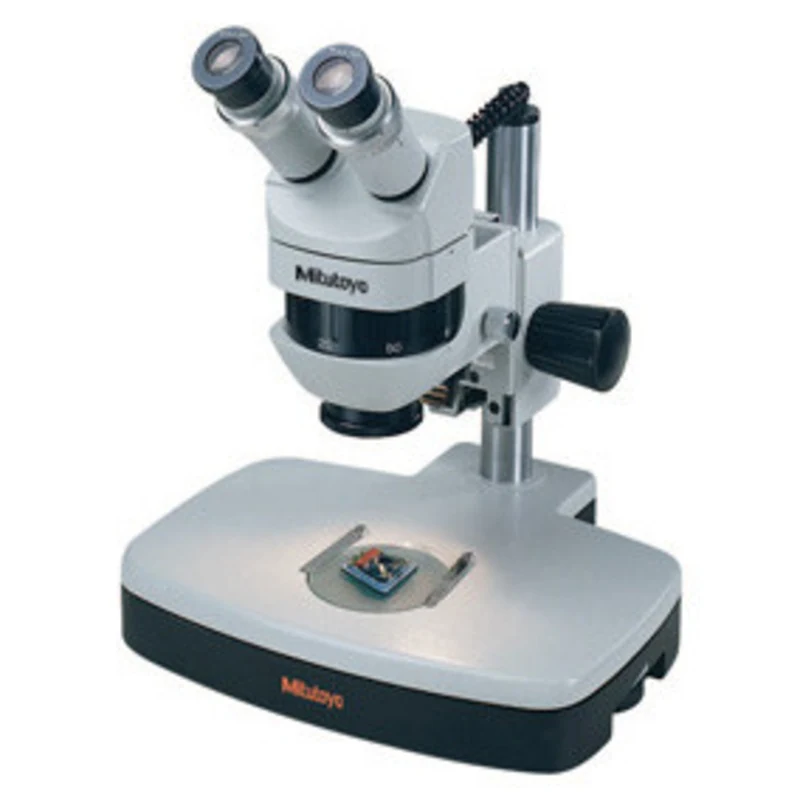

Mitutoyo Stereo Microscope MSM-464L – 377-991A

Model

MSM-464L

Total Magnification

6.4x – 40x

Mitutoyo Stereo Microscope MSM-464L – 377-991A

Features:

• Superior quality optics provide high-resolution
• Crystal sharp, high color contrast image with excellent depth of field
• Always in sharp focus at all magnifications
• The Parfocal Optical System allows relaxed strain-free viewing
• Long working distance
• Extreme large field of view (23mm diameter)

The MSM-464L, Order No. 377-991A, with its vertical five-step magnification changer is ideal for small part assembly. This stereo microscope with standard 6.4X, 10X, 16X, 25X, and 40X magnifications, has flexibility from 3.2X to 160X magnifications.

Specifications:

Order No
377-991A

Model
MSM-464L

Total Magnification
6.4x – 40x

Eyepiece
10x (377-456)

Objective.6x,1x,1.6x,2.5x,4x

Working distance
89mm

Field of view
23mm (w/ 377-456)

Dimension
14.3 x 13 x 11in

Mass
15.5 lbs. / 7kg

Stand
Transmitted Light Stand (377-428)

See all Mitutoyo Stereo Microscopes MSM-465L/MSM-464L, Series 377
