Mitutoyo Thickness Gage Series 547 – 547-400A

Range

0 – 0.47″ / 0-12mm

Resolution

0.00005″ / 0.001mm

Accuracy

0.00015″

Measuring Force

less than 3.5NN

Indicator

Digimatic IDC

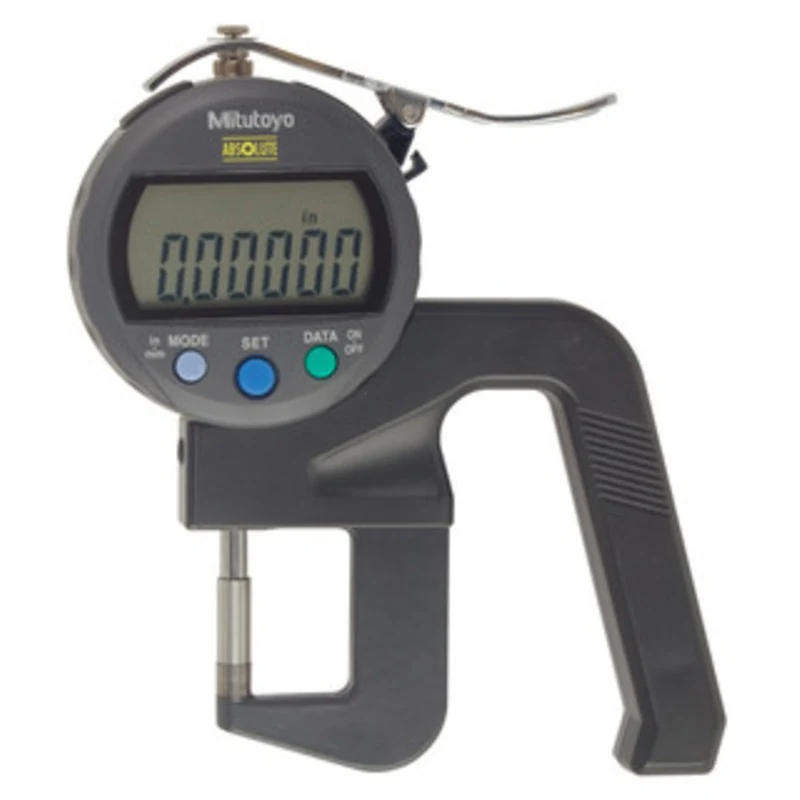

Mitutoyo Thickness Gage Series 547 Flat Anvil Type-Digital Type – 547-400A

Model 547-400A

Features:

• The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.
• Wide range of applications with various types of measuring faces (on the spindle and anvil)
• The digital models incorporate Mitutoyo’s popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis
• 547-400S is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials

Technical Data:
Function of Digital Models

IDS Types

• ON/OFF
• Inch/mm Conversion
• Origin
• Direction Changeover
• SPC Output
• Battery Life: 20,000 hrs
• Power Supply: Silver Oxide Cell (SR-44 1pc.)

IDC Types

• ON/OFF
• Inch/mm Conversion
• Zero/ABS
• Direction Changeover
• SPC Output
• Battery Life: 5,000 hrs
• Power Supply: Silver Oxide Cell (SR-44 1pc.)
• Preset
• Provides GO/NG Judgment
• Face Rotates 330
