Availability: 5 in stock

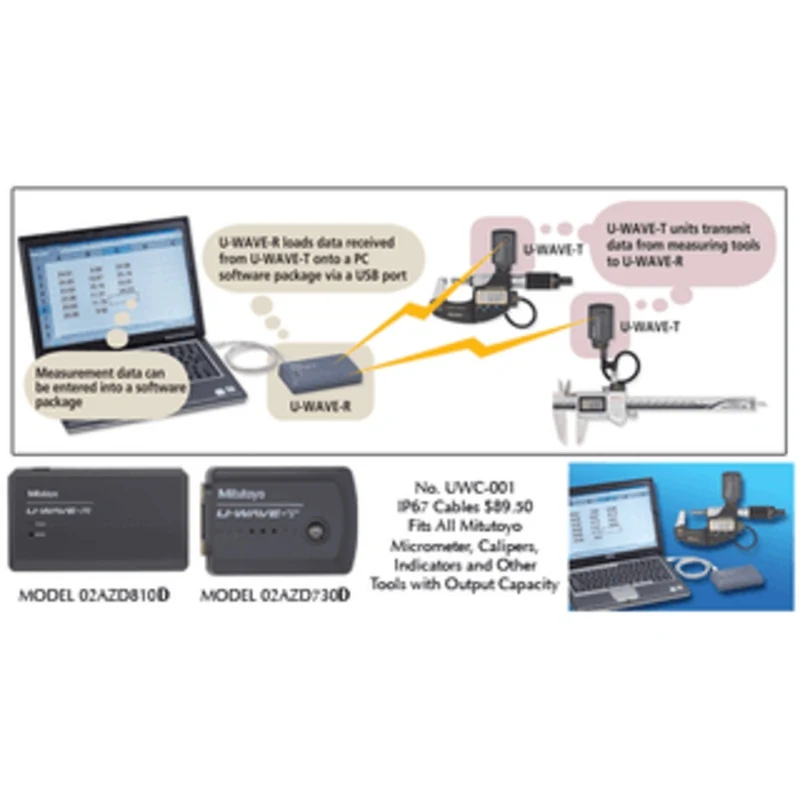

The U-Wave system enables easy wireless data communication from a measuring tool to a PC using the digimatic protocol. Measurement efficiency is improved by eliminating long and cumbersome data cables. The user-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Excel or Notepad.
How to “Spec” a U-Wave System:
1.One-U-Wave-R required per system (will support up to 100 U-Wave-T).
2.One U-Wave-T required per tool: Order No.01AZD730D
3.Required IP67 connecting cable (6″ length ).Please specify measuring tool number you are using or call us for proper cable connection.
U-WAVE “R” Features:
Supports up to 100 U-Wave-T.
Comes complete with U-WavePak set-up/data input software.
U-WavePak, standard w/U-Wave-R features a keyboard interface function. This allows measurement data to be easily entered into an Excel, Notepad or other formats that accepts numeric value input via a keyboard.
Supplied with USB connecting cable.
Measurlink V6.1 real-time Plus also supports the U-Wave system.
U-WAVE “T”
No. 02AZD730D
Features:
Is IP67 rated.
IP67 cables available for your Mitutoyo waterproof tools.
Battery life approx. 400,000 data trans-missions.
Up to 60 feet trans-mission range Actual range depends on the local radio transmission characteristics.
