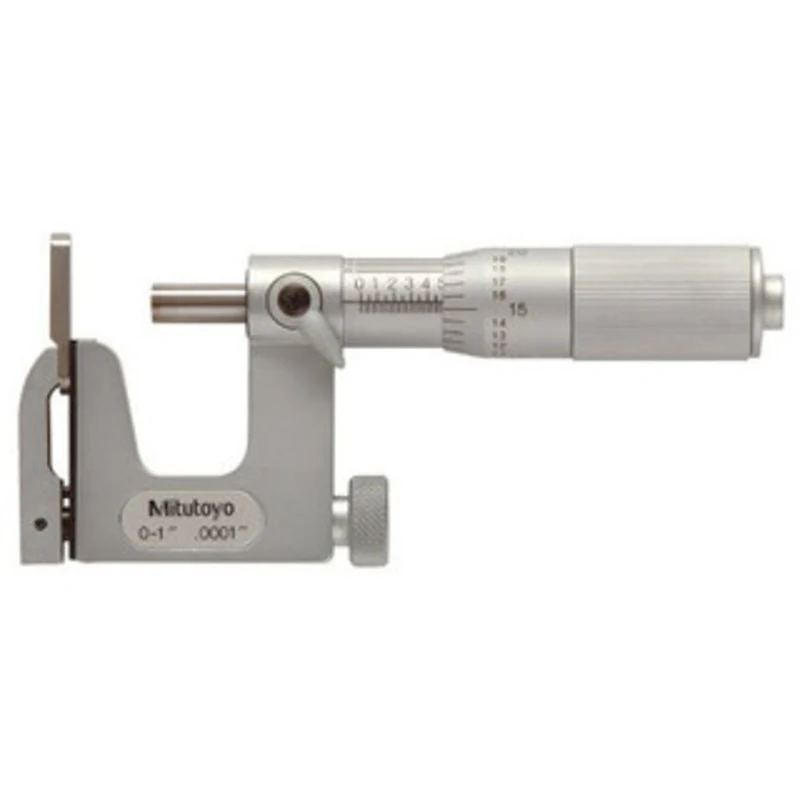

Mitutoyo Uni-Mike Micrometer, Interchangeable Anvil Type, 0-1 w/ Friction Thimble – 117-107

Range

0 – 1″

Accuracy

0.0002″

Graduation

0.0001″

Notes

w/ Friction Thimble

Mitutoyo Uni-Mike Micrometer, Interchangeable Anvil Type, 0-1″ w/ Friction Thimble – 117-107

This Micrometer Interchangeable Anvil Type lets you measure a range of different features.

It offers the following benefits:

• It is designed to accept interchangeable anvils shaped for specific tasks.
• You can use it to measure the wall thickness of tubes, as well as openings and slots from edge to edge, and features in hard-to-reach locations.

Features:

• IP65 water/dust protection (Series 317)
• Measures tubing thickness, shoulder edge distance, rivet head height, etc. with interchangeable anvils (flat anvil, rod anvil, V-anvil)

Supplied with:

• Flat Anvil (201216)
• and Rod Anvil:
  – 3mm/.118″ rod anvil (201217) for 0-25mm/0-1″ models
  – 5mm/.197″ (201379) for 25-50mm / 1-2″ model
• With special Disk Anvils. The Uni-Mike is used as a height micrometer. The disks have a lapped, mirror surface.
• With a standard bar except 0-25mm and 0-1″ model
• Supplied in fitted plastic case

Technical Data:

• Accuracy: Refer to the list of specifications.
• Resolution*: 0.001mm or.00005″/0.001mm
• Graduation**: 0.01mm or.0001″
• Spindle face: Carbide tipped
• Display*: LCD
• Battery*: SR44 (1 pc.), 938882
• Battery life*: Approx. 1.2 years under normal use
• Dust/Water protection level*: IP65

* Digital models
** Analog models

Optional Accessories:

• 05CZA662: SPC cable with data switch (1m/40″)*
• 05CZA663: SPC cable with data switch (2m/80″)*
• 201218: V-anvil
• 950758: Disk anvil for 25m (1″) models
• 950759: Disk anvil for 50m (2″) models

Specifications:

Range
0 – 1 inch

Accuracy
0.0002″

Anvils included
201217, 201216

Mass
255 g

Graduation
0.0001″

Flatness
0,6 m (spindle) 2 m (anvil)

Parallelism
3 m

Measuring surfaces
Carbide tipped (spindle)

Measuring spindle
With spindle lock, 6,35 mm, spindle pitch 0,5 mm

Measuring force
5 – 10 N

Delivered
Including box, setting standard (from 25 mm upward), key, anvils

Digital/Analog
Analog

Inch-Metric
Inch
