Monarch Instrument Pocket Laser Tachometer 200 – 6125-010

Monarch Instrument Pocket Laser Tachometer 200 – 6125-010

Pocket Laser Tachometer 200: Tachometer/timer/totalizer with N.I.S.T traceable certificate of calibration, and 12 in. of Reflective Tape.

Pocket Laser Tachometer 200 KIT: Tachometer/timer/totalizer with N.I.S.T traceable certificate of calibration, 5 feet of Reflective Tape, Carrying Case and Remote Contact Assembly for contact speed measurements.
Click to view the Pocket Laser Tachometer 200 KIT

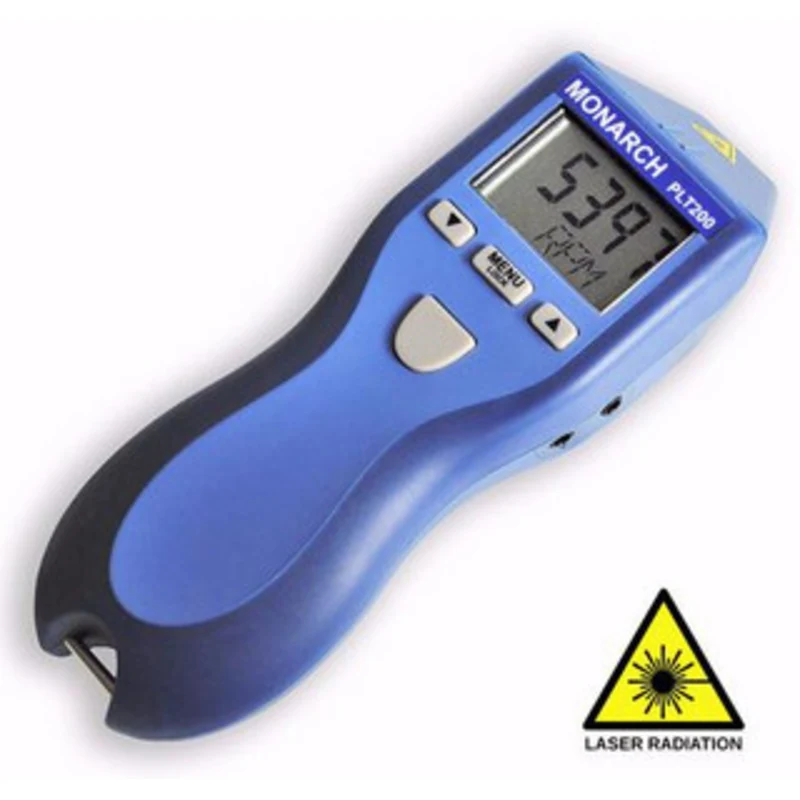

PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.

Multi-Function:

PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both our optional Remote Contact Assembly (RCA) and our Remote Sensors. PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes. The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.

* performance subject to intensity of ambient light irradiation.

Features:

• All Pocket Tach Series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.
• Operating Range up to 25 feet* (Class 2 visible laser)
• Accepts Remote Contact Assembly (optional)
• Accepts Remote Sensors (optional)
• TTL Pulse Output (requires optional 6 foot BNC Cable)
• Auto Ranging/Fixed Decimal (user selectable)
• English and Metric Rates
• Tripod Mounting Bushing
• On-Target and Low Battery Indicators
• Rugged Rubberized Housing
• N.I.S.T. traceable Certificate of Calibration included

Specifications:

Display
5 Digits, 5 Alpha-numeric LCD

Range(s)
Optical: 5 to 200,000 RPM

merge
Contact RPM: 0.5 to 20,000 RPM (see rates below)

Accuracy
Optical:+/-0.01% of reading

merge
Contact:+/-0.05% of reading (rpm)

Totalizer
1-999,990

Resolution
0.001 to 10 RPM (range dependent)

Operating Range
2 inches to 25 feet*, +/-70

Memory
Maximum, Minimum and Last reading

Power
(2) “AA” 1.5 VDC batteries (30 hours)

Environmental
Temp: 5 to 40C (0 to 100F) RH:80% RH up to 31C (88F)

Dimensions
6.92″ H x 2.4″ W x 1.6″ D

Weight
7 oz. (210 g)

RATES:
10cm Contact Wheel
12 inch circumference Contact Wheel

Inch/min
1.969 to 78,740 IPM
6,000 to 144,000 IPM

Feet/min
0.164 to 6,561.7 FT/M
0.500 to 12,000 FT/M

Yard/min
0.055 to 2,187.2 YPM
0.167 to 4,000.0 YPM

Cm/min
5.000 to 200,000 cm/M
15.240 to 365,760 cm/M

M/min
0.050 to 2,000.0 M/M
0.153 to 3,657.6 M/M
